Exploded View: Disassembly

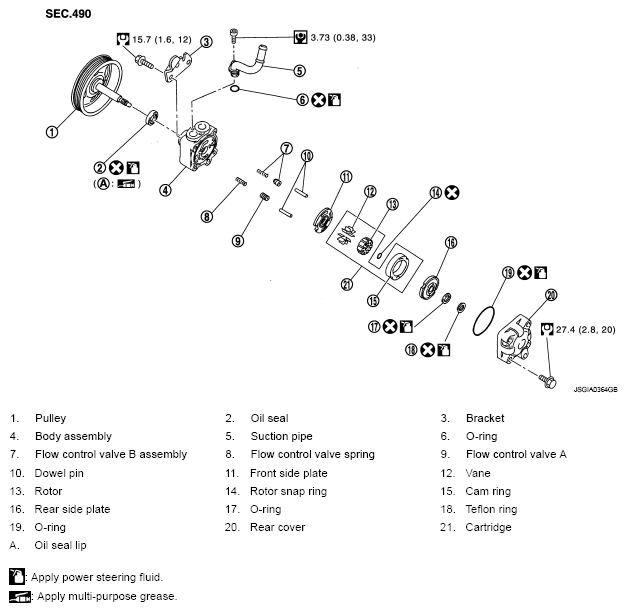

Fig 1: Exploded View Of Power Steering Oil Pump Replacement Components With Torque Specifications
G05729689Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols not described on the above.
