Exploded View

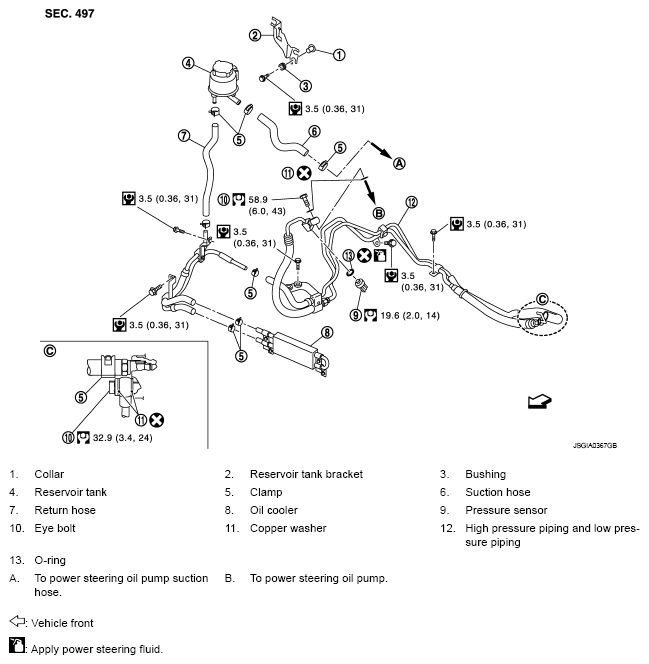

Fig 1: Exploded View Of Hydraulic Line (AWD) Replacement Components With Torque Specifications
G05729705Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols not described on the above.
