Driver Air Bag Module
>>
Exploded View
Exploded View

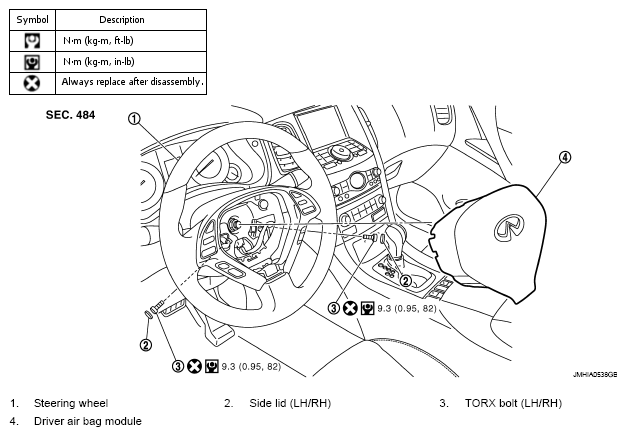

Fig 1: Identifying Driver Air Bag Module Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols in the figure
