Home >> Infiniti >> 2008 >> EX35 Base, AWD >> Repair and Diagnosis >> General Information >> OEM General Information >> General Information >> Basic Inspection >> Consult-III/GST Checking System >> CONSULT-III Function and System Application*1

CONSULT-III Function and System Application*1

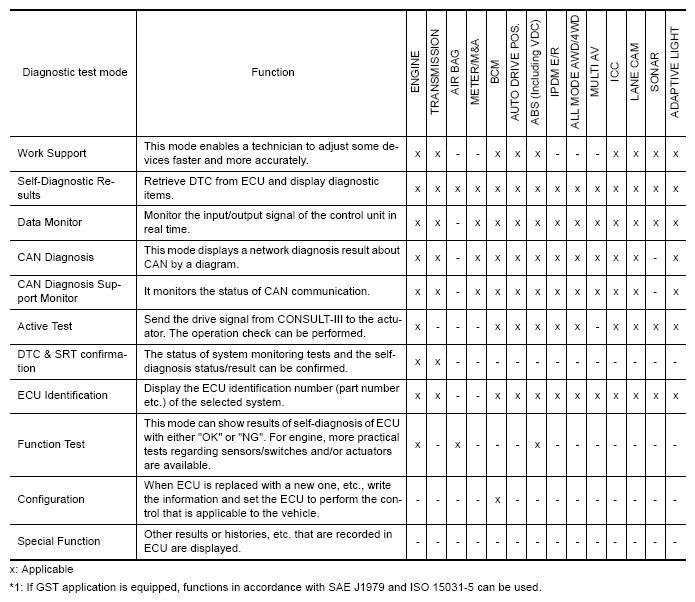

Fig 1: Identifying CONSULT-III Function And System Application *1 Chart

G05728981

Courtesy of NISSAN MOTOR CO., U.S.A.
