Overall Sequence

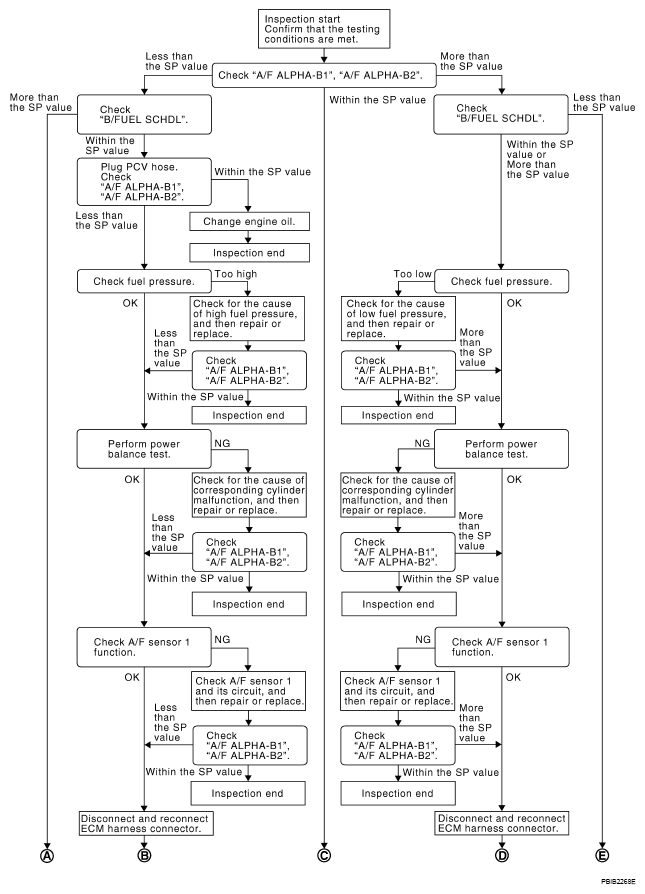

Fig 1: Diagnosis Flow Chart For Overall Sequence (1 Of 2)
G04874899Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Diagnosis Flow Chart For Overall Sequence (2 Of 2)
G05207683Courtesy of NISSAN MOTOR CO., U.S.A.
