Infiniti
>>
2008
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Meter, Warning Lamp & Indicator
>>
Function Diagnosis
>>
Meter System
>>
Meter Illumination Control
>>
System Diagram
System Diagram

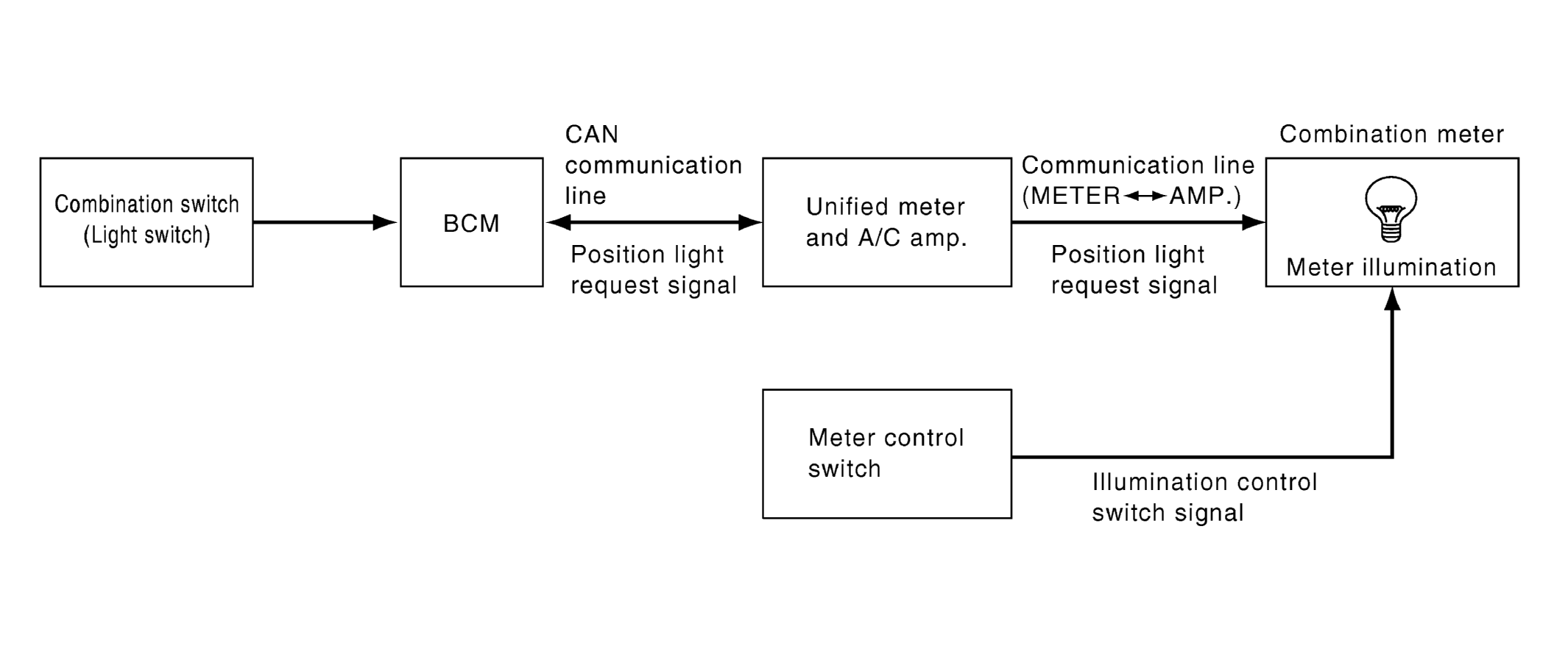

Fig 1: Identifying Meter Illumination Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
