Overall Sequence

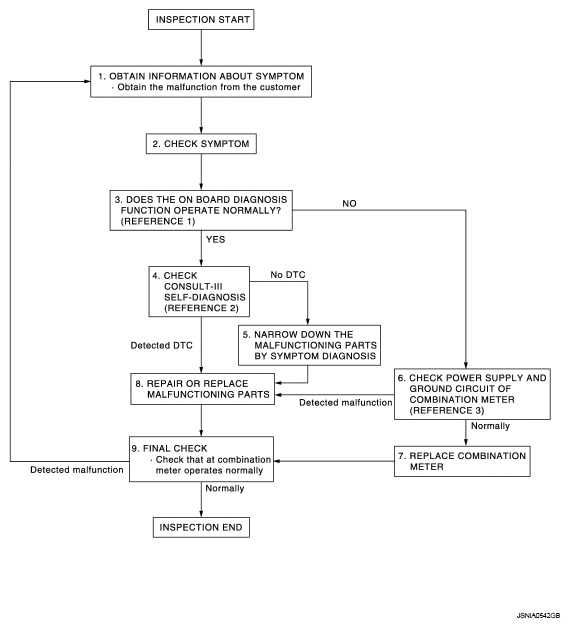

Fig 1: Identifying Diagnosis & Repair Work Flow Chart - Overall Sequence
G05373003Courtesy of NISSAN MOTOR CO., U.S.A.
