Removal and Installation: Removal

  1. Disconnect the battery cable from the negative terminal.
  2. Remove air cleaner case. Refer to EXPLODED VIEW .
  3. Disconnect power steering oil pressure sensor connector (A).
  4. Remove the clip (B) from the harness bracket (1) and "B" terminal harness from the clip (C).

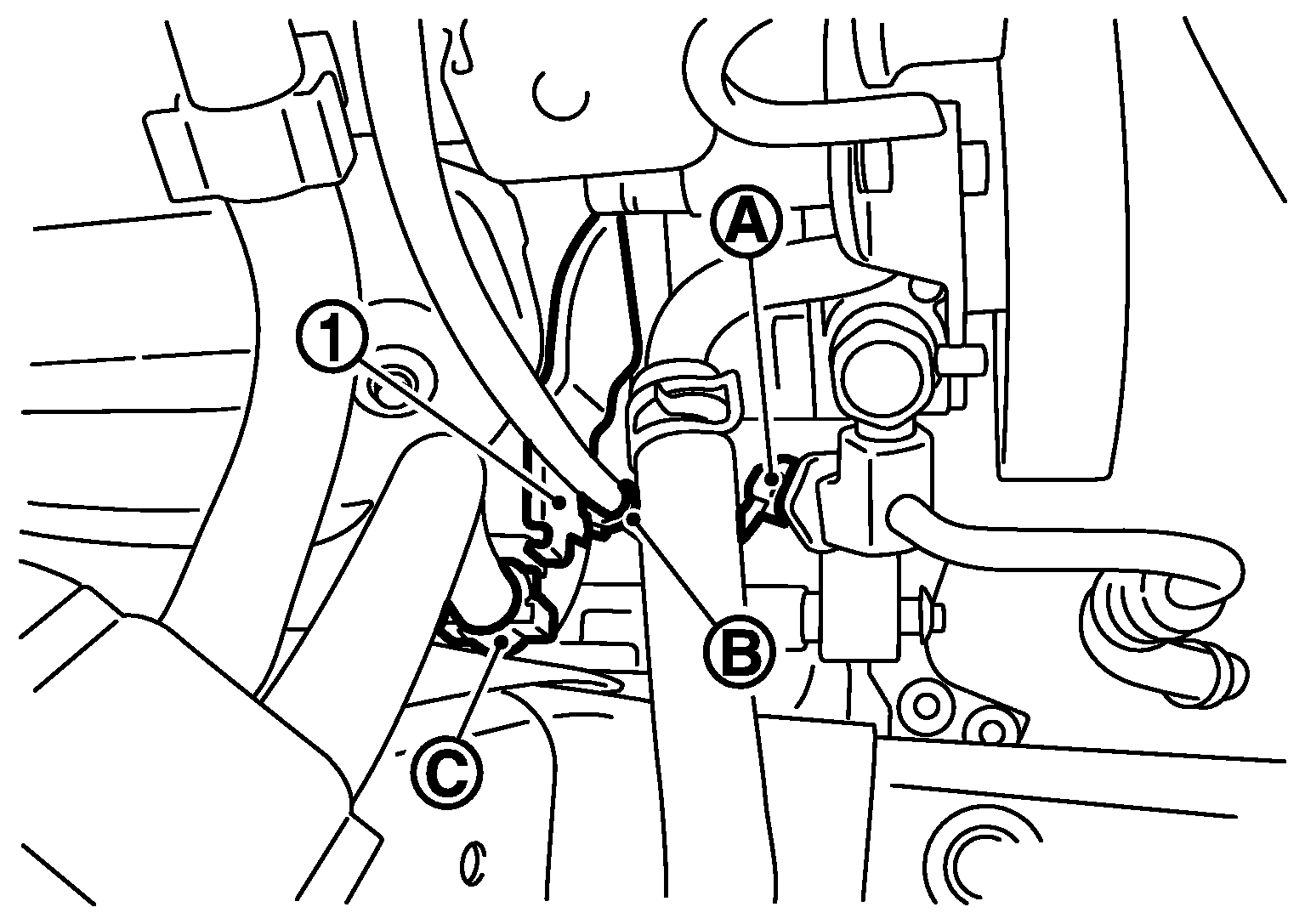

    Fig 1: Identifying Power Steering Oil Pressure Sensor Connector & Harness Bracket
    G05226772Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove engine undercover, using power tools.
  6. Remove radiator cooling fan assembly. Refer to EXPLODED VIEW .
  7. Remove drive belt. Refer to REMOVAL AND INSTALLATION .
  8. Remove alternator mounting bolt (B) and alternator stay mounting bolt (C) using power tools, then remove alternator stay (1).
  9. Remove alternator mounting bolt (A), using power tools.

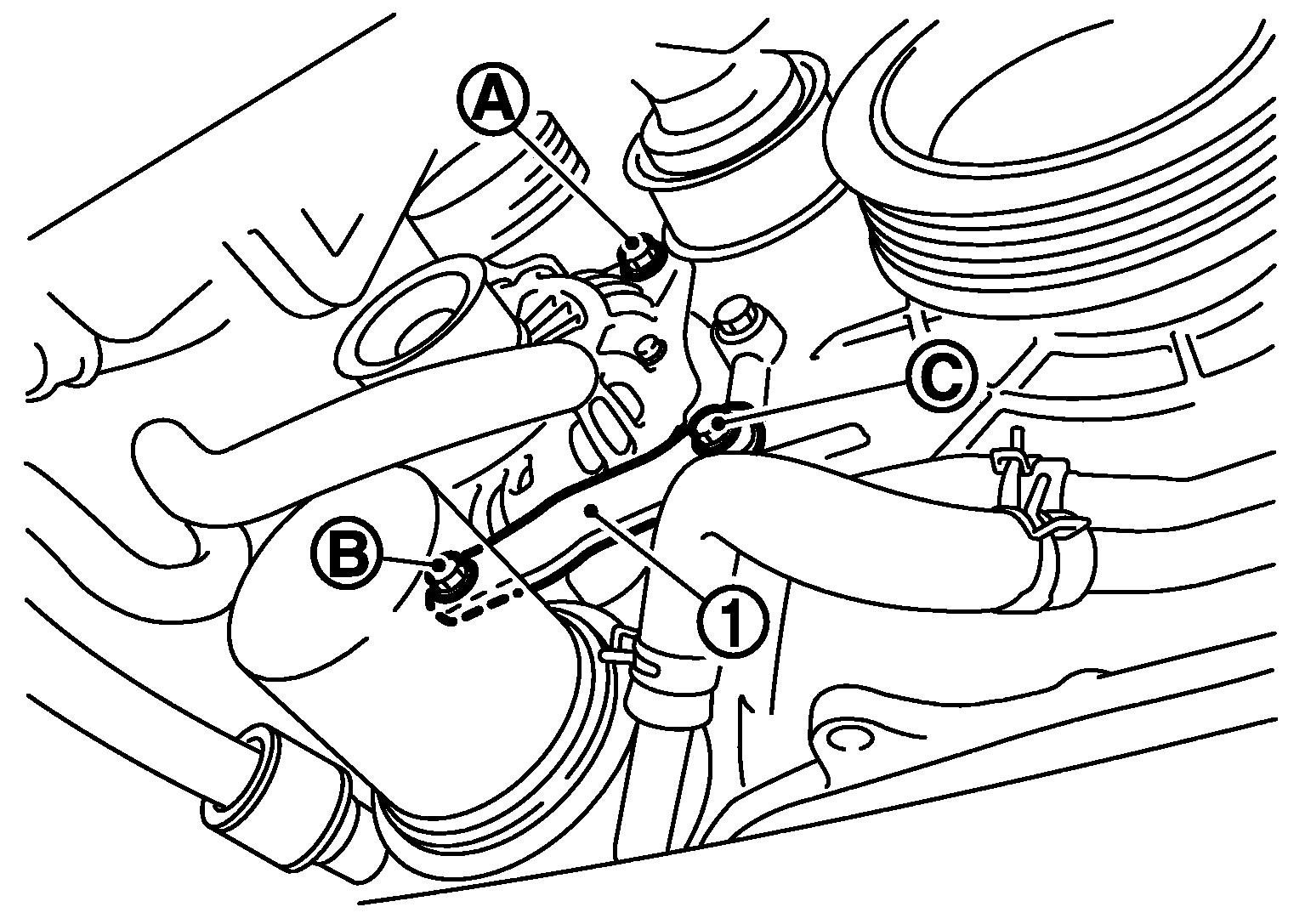

    Fig 2: Identifying Alternator Stay & Mounting Bolt
    G05226773Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Pull and turn alternator, and then remove the harness bracket bolts (A).
  11. Disconnect alternator connector (1).
  12. Remove "B" terminal nut (2).
    Fig 3: Identifying Alternator Connector, Harness Bracket Bolts & Terminal Nut
    G05226774Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove power steering oil pump mounting bolts (1) and power steering oil pump hose bracket bolts (2).

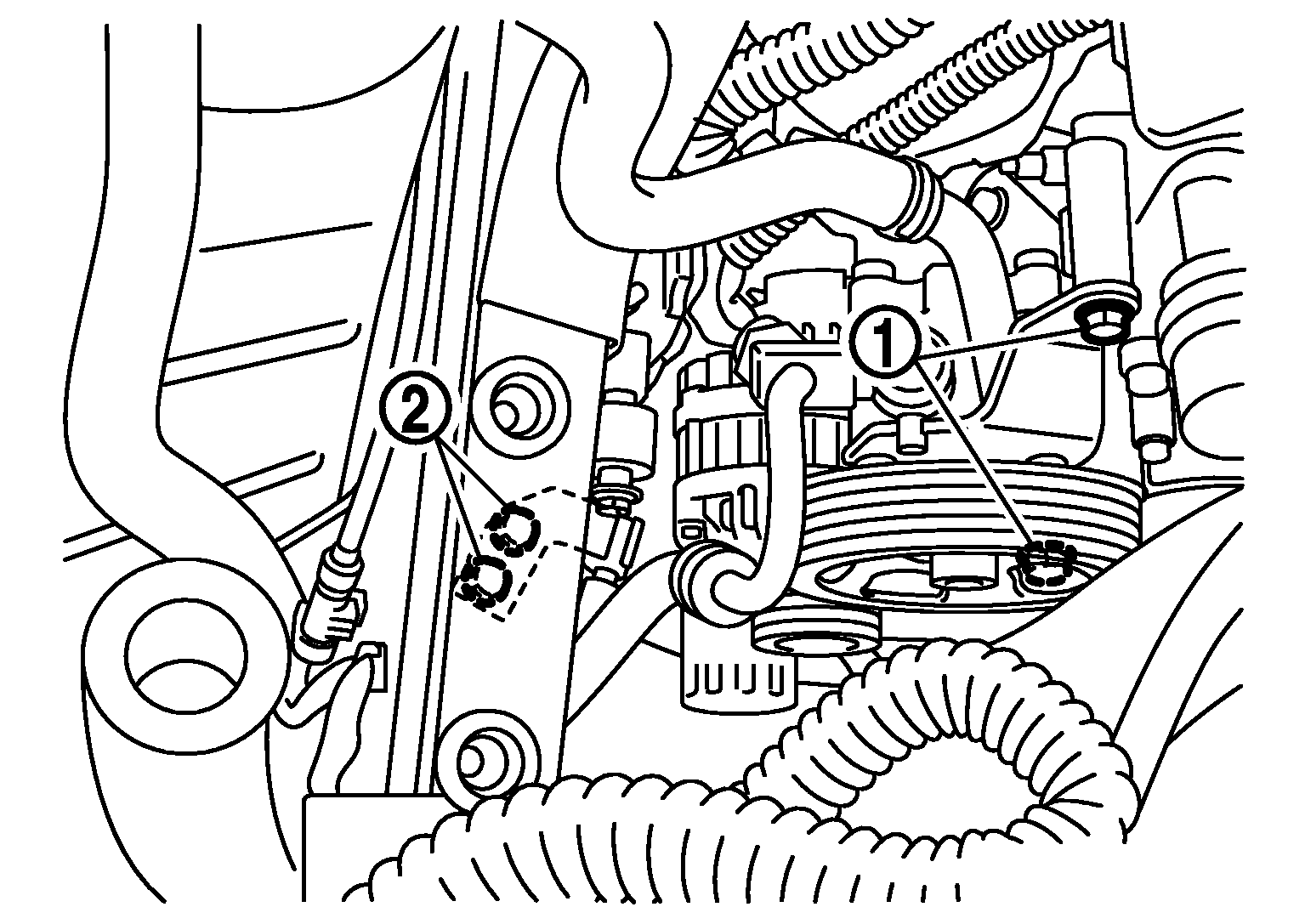

    Fig 4: Identifying Power Steering Oil Pump Mounting Bolts & Hose Bracket Bolts
    G05731066Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Move a power steering pump (1) and reservoir tank (2) forward.

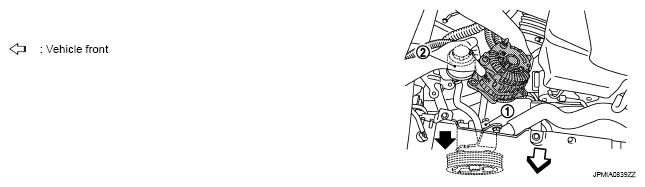

    Fig 5: Identifying Power Steering Pump & Reservoir Tank
    G05731067Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove alternator assembly upward from the vehicle.
