Infiniti
>>
2008
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Door & Lock
>>
On-Vehicle Repair
>>
Hood
>>
Hood Assembly
>>
Exploded View
>>
Removal
Exploded View: Removal

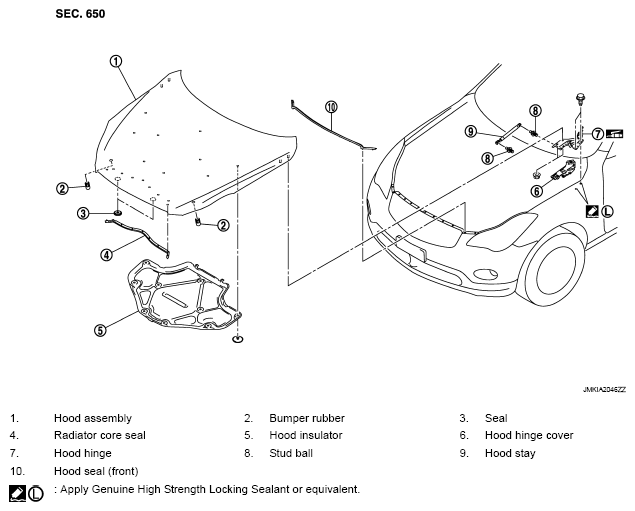

Fig 1: Exploded View Of Hood Assembly Replacement Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
