Hood
>>
Hood Assembly
>>
Exploded View
>>
Adjustment
Exploded View: Adjustment

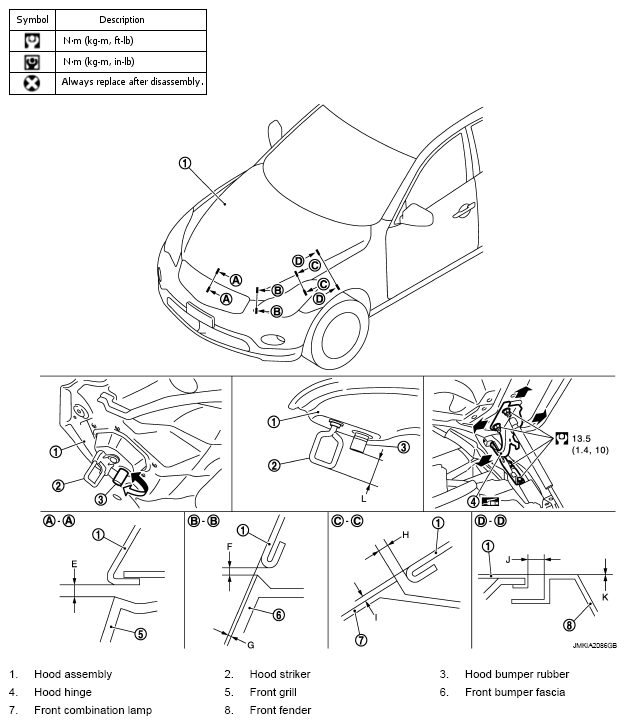

Fig 1: Hood Assembly Adjusting Dimensions With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
