Infiniti
>>
2008
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Door & Lock
>>
On-Vehicle Repair
>>
Back Door Lock
>>
Exploded View
Exploded View

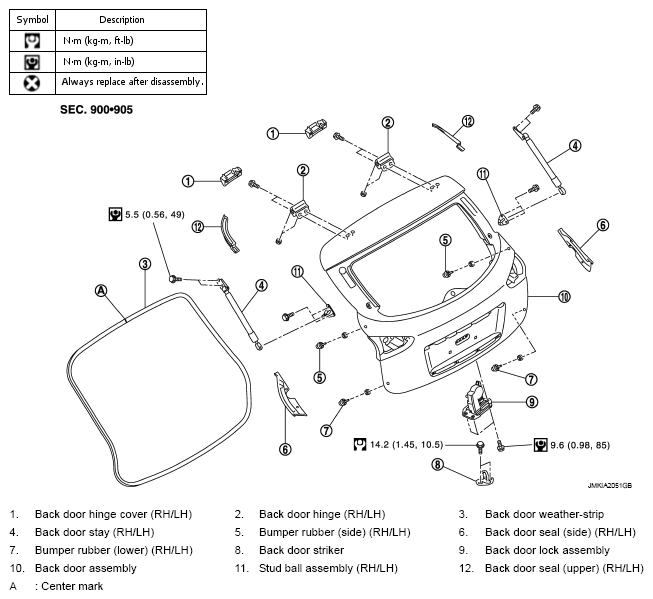

Fig 1: Exploded View Of Back Door Lock Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
