Component Parts Location
Component Parts Location

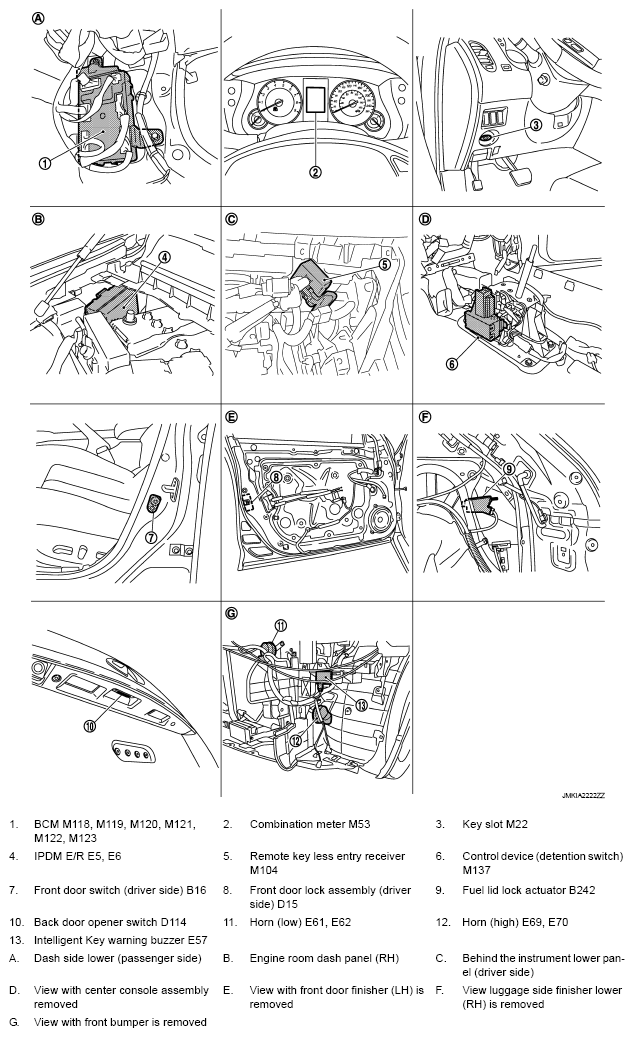

Fig 1: Identifying Remote Keyless Entry Function Components Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

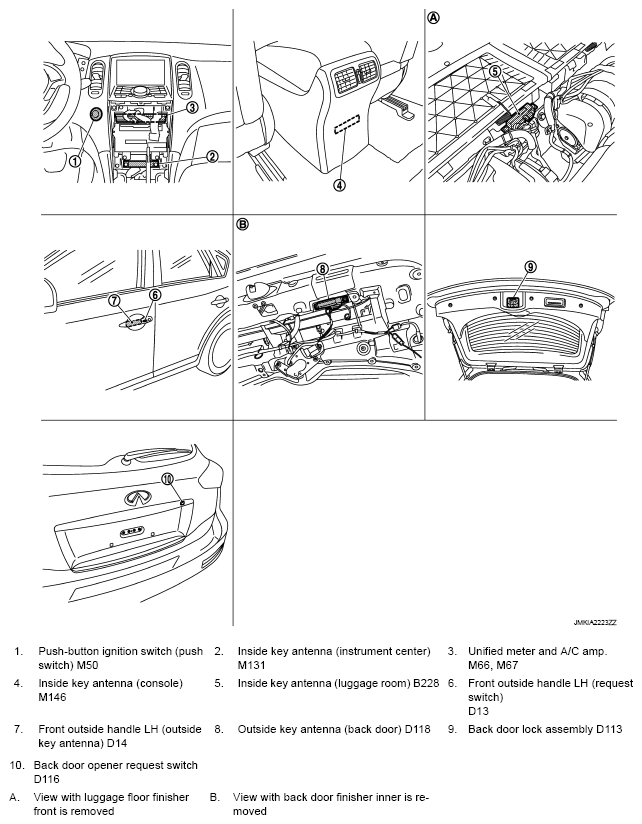

Fig 2: Identifying Remote Keyless Entry Function Components Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
