Rear Suspension Assembly: Components

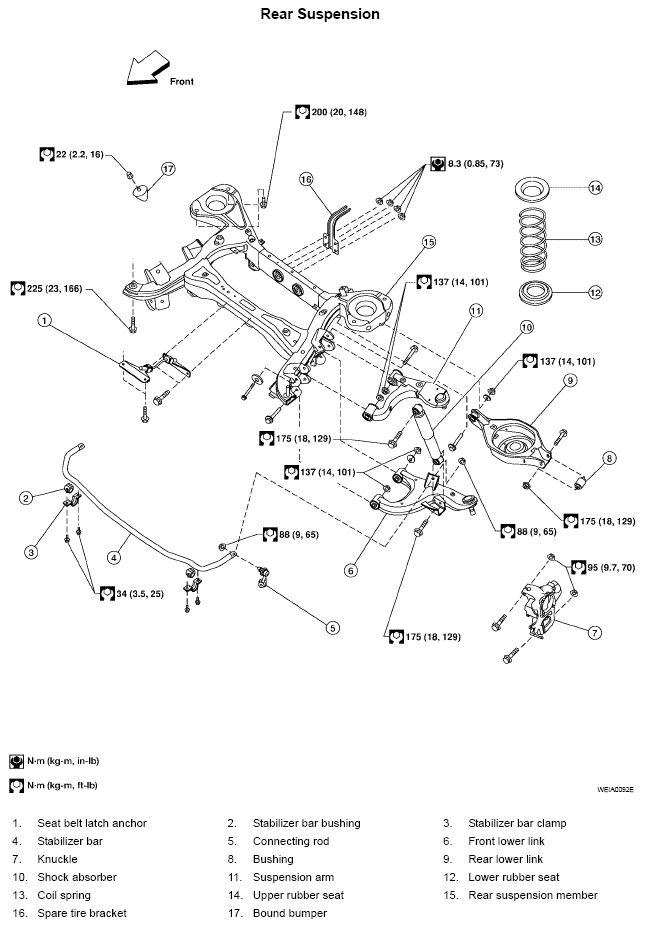

Fig 1: Rear Suspension Assembly Replacement Components With Torque Specifications (1 Of 2)
G05230383
Fig 2: Rear Suspension Assembly Replacement Components With Torque Specifications (2 Of 2)
G05230384
