Home >> Infiniti >> 2007 >> QX56 RWD >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Radiator >> Removal and Installation >> Notes

Removal and Installation: Notes

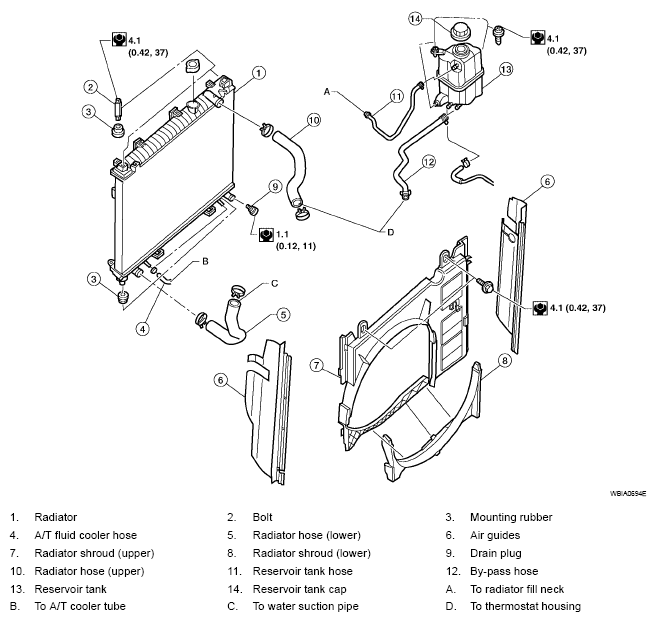

Fig 1: Identifying Radiator Components
G05228336Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator.
