Removal and Installation (2WD): Components: Notes

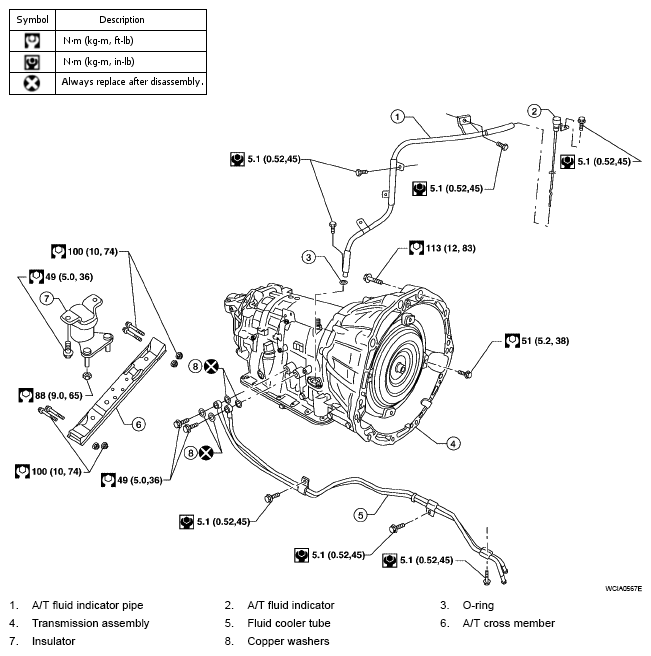

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (2WD)

G05229551
