Home >> Infiniti >> 2007 >> QX56 AWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Overhaul >> Oil Channel

Oil Channel

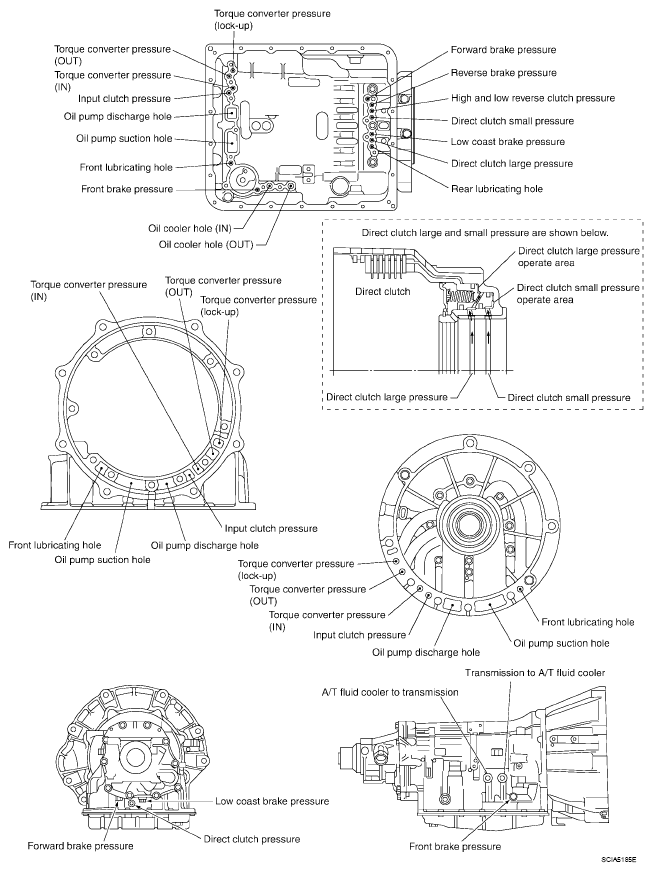

Fig 1: Identifying Oil Channel - 2WD Models

G05229569

Fig 2: Identifying Oil Channel - 4WD Models

G04901173
