Home >> Infiniti >> 2007 >> QX56 AWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> On-Vehicle Service >> Control Valve, TCM and A/T Fluid Temperature Sensor 2 >> Components

Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

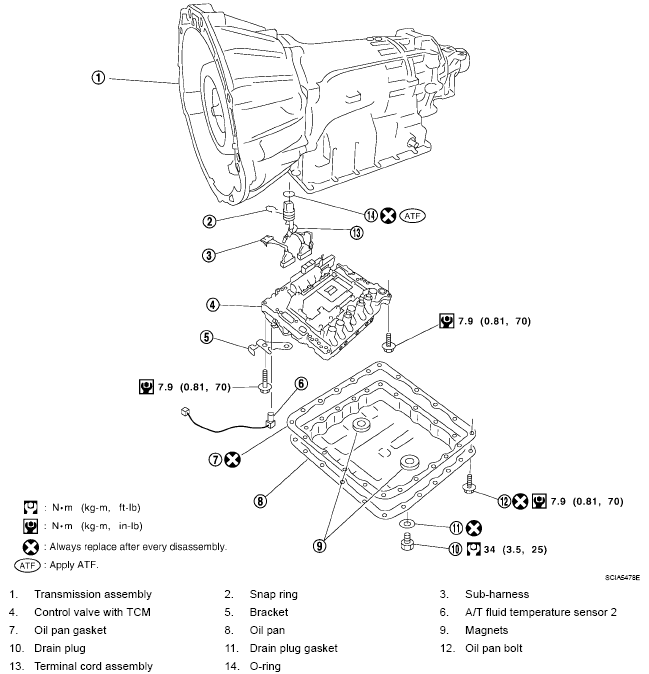

Fig 1: Control Valve With TCM And A/T Fluid Temperature Sensor 2 With Torque Specifications

G05229508
