Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For PR, go to PROPELLER SHAFT .

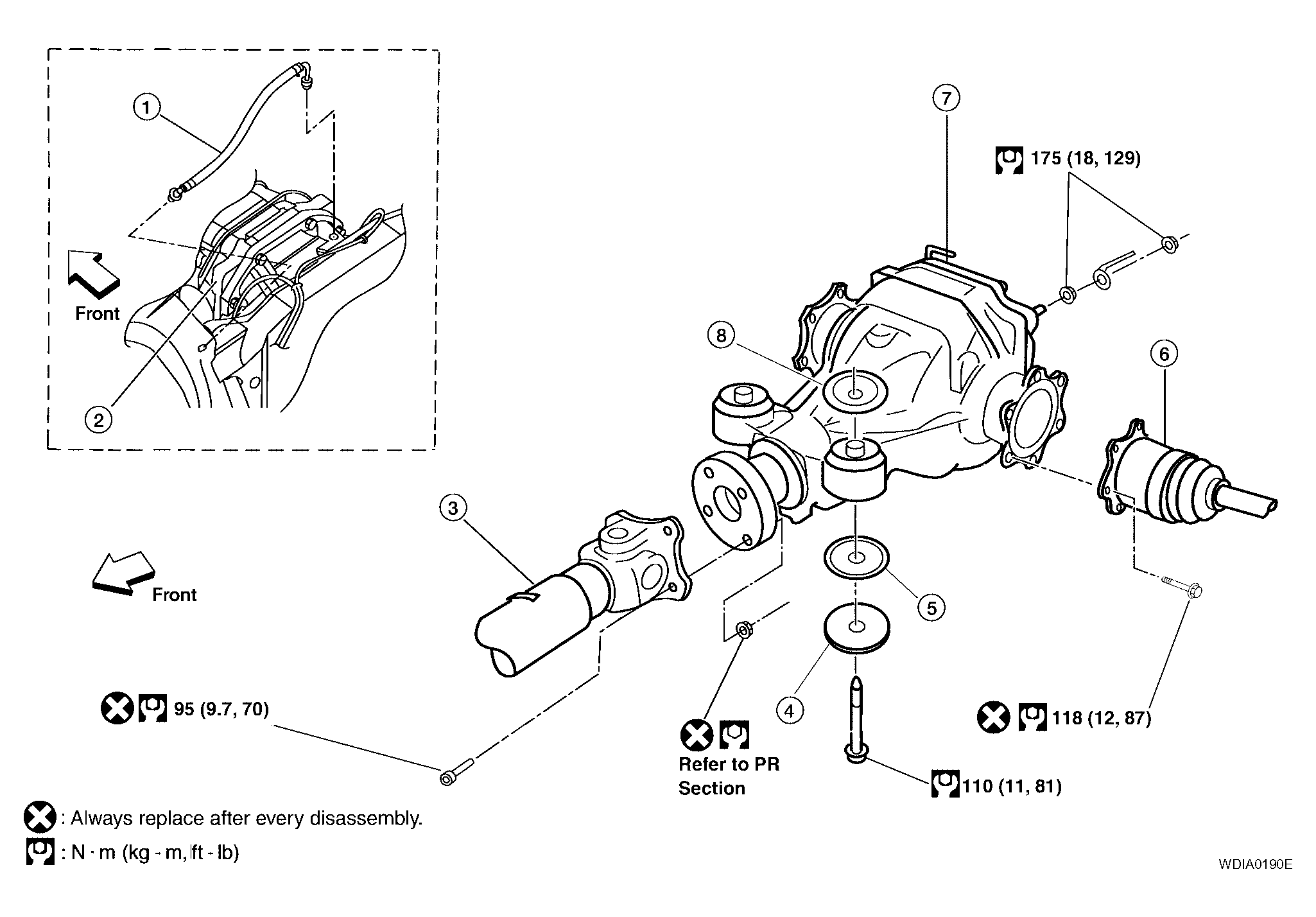

Fig 1: Rear Final Drive Assembly With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Insert the plastic end of the breather hose into the hole in the suspension member.
Insert the metallic end of the breather hose into the rear final drive cover with the blue paint mark facing forward.
