UART Communication Line Circuit Inspection

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK UART LINE INPUT/OUTPUT SIGNAL 1

Turn ignition switch OFF.

Check signal between driver seat control unit connector and ground, with oscilloscope.

CONNECTOR TERMINAL VOLTAGE SIGNAL SPECIFICATION

Connector	Terminals		Condition	Signal
Connector	(+)	(-)	Condition	Signal
P2	17	Ground	Pedal adjusting switch ON (FORWARD or BACKWARD operation)

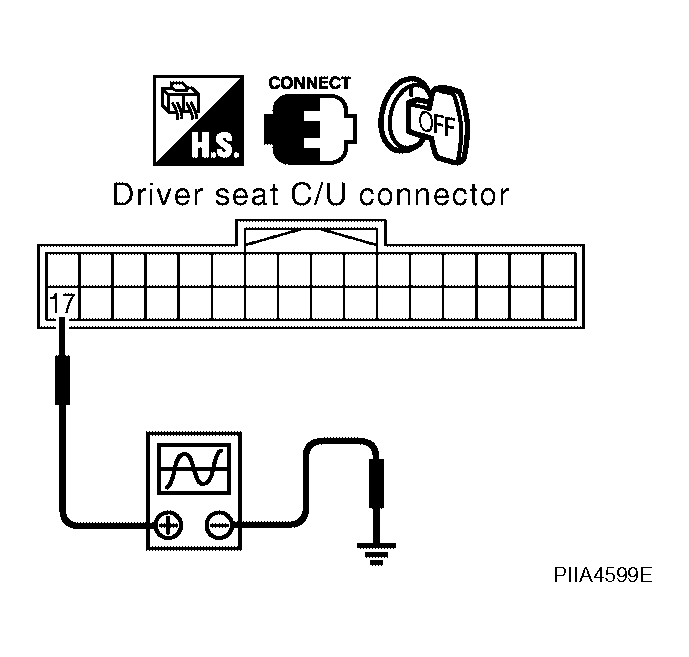

Fig 1: Identifying Signal Between Driver Seat Control Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 2.
NG : Check the following.
- When voltage wave form does not appear with a constant voltage (approx. 5V), replace driver seat control unit.
- When voltage wave form does not appear with a constant voltage (approx. 0V), replace automatic driver seat control unit.

CHECK UART LINE INPUT/OUTPUT SIGNAL 2

Check signal between automatic drive positioner control unit connector ground, with oscilloscope.

CONNECTOR TERMINAL VOLTAGE SIGNAL SPECIFICATION

Connector	Terminals		Condition	Signal
Connector	(+)	(-)	Condition	Signal
M33	10	Ground	Pedal adjusting switch ON (FORWARD or BACKWARD operation)

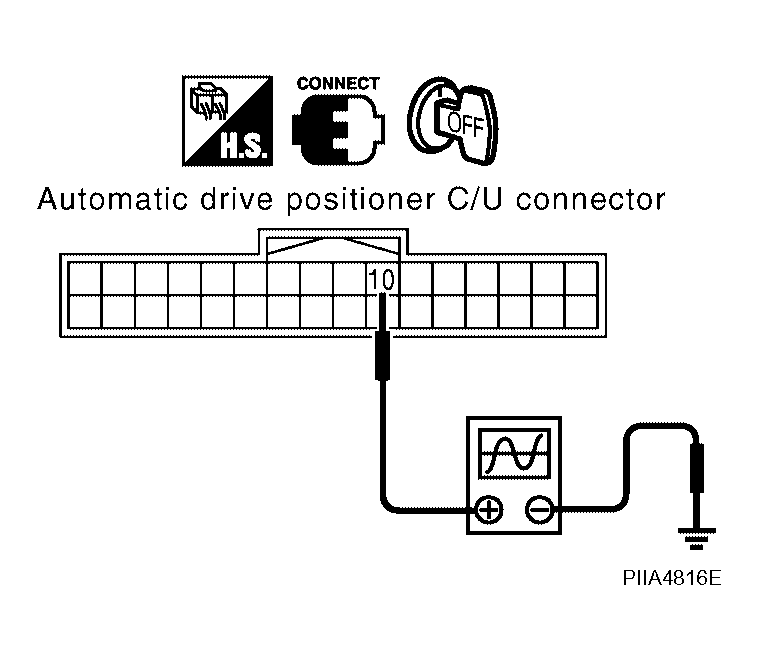

Fig 2: Identifying Signal Between Automatic Drive Positioner Control Unit Connector Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.
NG : Check the following.
- When voltage wave form does not appear with a constant voltage (approx. 5V), replace automatic drive positioner control unit.
- When voltage wave form does not appear with a constant voltage (approx. 0V), replace driver seat control unit.

CHECK UART LINE HARNESS
1. Disconnect driver seat control unit and automatic drive positioner control unit.
2. Check continuity between driver seat control unit connector P2 terminals 1, 17, and automatic drive positioner connector M33 terminals 10, 26.
  1 - 10 : Continuity should exist.

  17 - 26 : Continuity should exist.
3. Check continuity between driver seat control unit connector P2 terminals 1, 17 and ground.
  1 - Ground : Continuity should not exist.

  17 - Ground : Continuity should not exist.

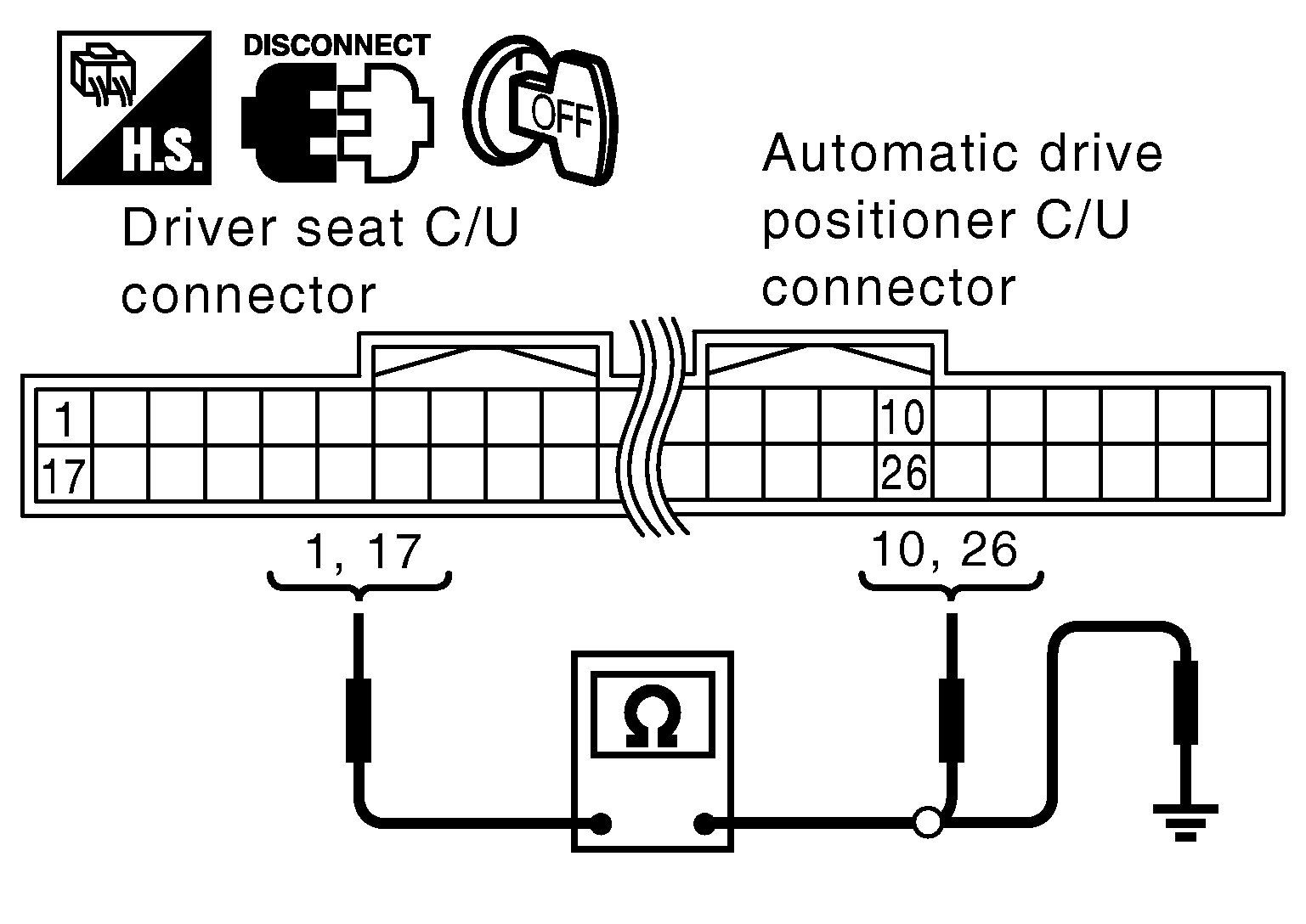

  Fig 3: Identifying Continuity Between Driver Seat Control Unit Connector P2 Terminals 1, 17 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : GO TO 4.
- NG : Repair or replace harness.
CHECK DRIVER SEAT CONTROL UNIT
Does the automatic drive positioner operate when the driver seat control unit is exchanged?

OK or NG
- OK : Replace driver seat control unit.
- NG : Replace automatic drive positioner control unit.
