Mirror Sensor RH Circuit Check

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR FUNCTION
Check the following items.

Operation malfunction in memory control

NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG
- OK : GO TO 2.
- NG : Repair or replace the malfunctioning parts, and check the symptom again.

CHECK MIRROR SENSOR INSPECTION

With CONSULT-II

Check that "ON" is displayed on "MIR/SEN RH R-L, MIR/SEN RH U-D" in the DATA MONITOR.

MONITOR ITEM CONTENTS

Monitor item [OPERATION or UNIT]		Contents
MIR/SEN RH R-L	"V"	Voltage output from door mirror RH sensor (LH/RH) is displayed.
MIR/SEN RH U-D	"V"	Voltage output from door mirror RH sensor (UP/DOWN) is displayed.

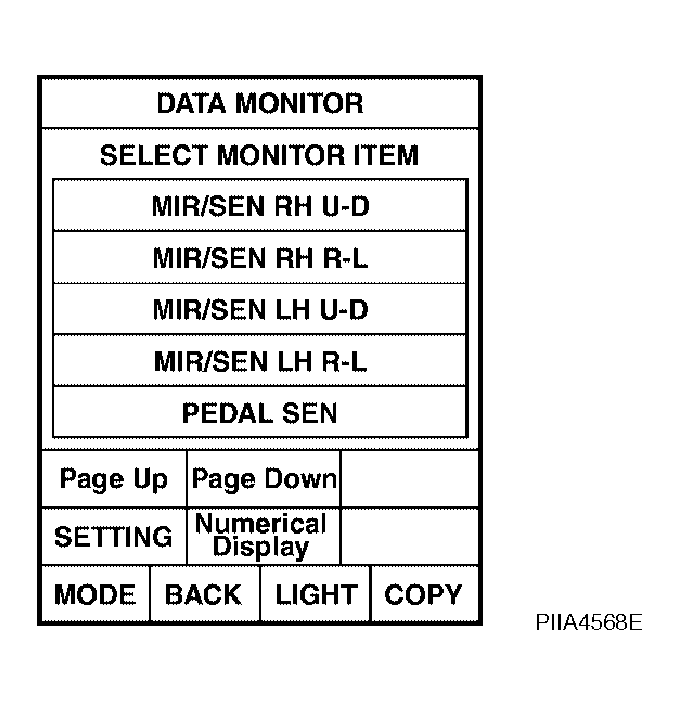

Fig 1: CONSULT-II Display - MIR/SEN RH R-L

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Turn ignition switch to ACC.

Check voltage between door mirror RH connector and ground.

CONNECTOR TERMINAL VOLTAGE SPECIFICATION

Connector	Terminals		Condition	Voltage(V) (Approx.)
Connector	(+)	(-)	Condition	Voltage(V) (Approx.)
D107	7	Ground	Mirror motor is operated UP or DOWN	Changes between 3.4 (close to peak) - 0.6 (close to valley)
D107	8	Ground	Mirror motor is operated LEFT or RIGHT	Changes between 3.4 (close to left edge) - 0.6 (close to right edge

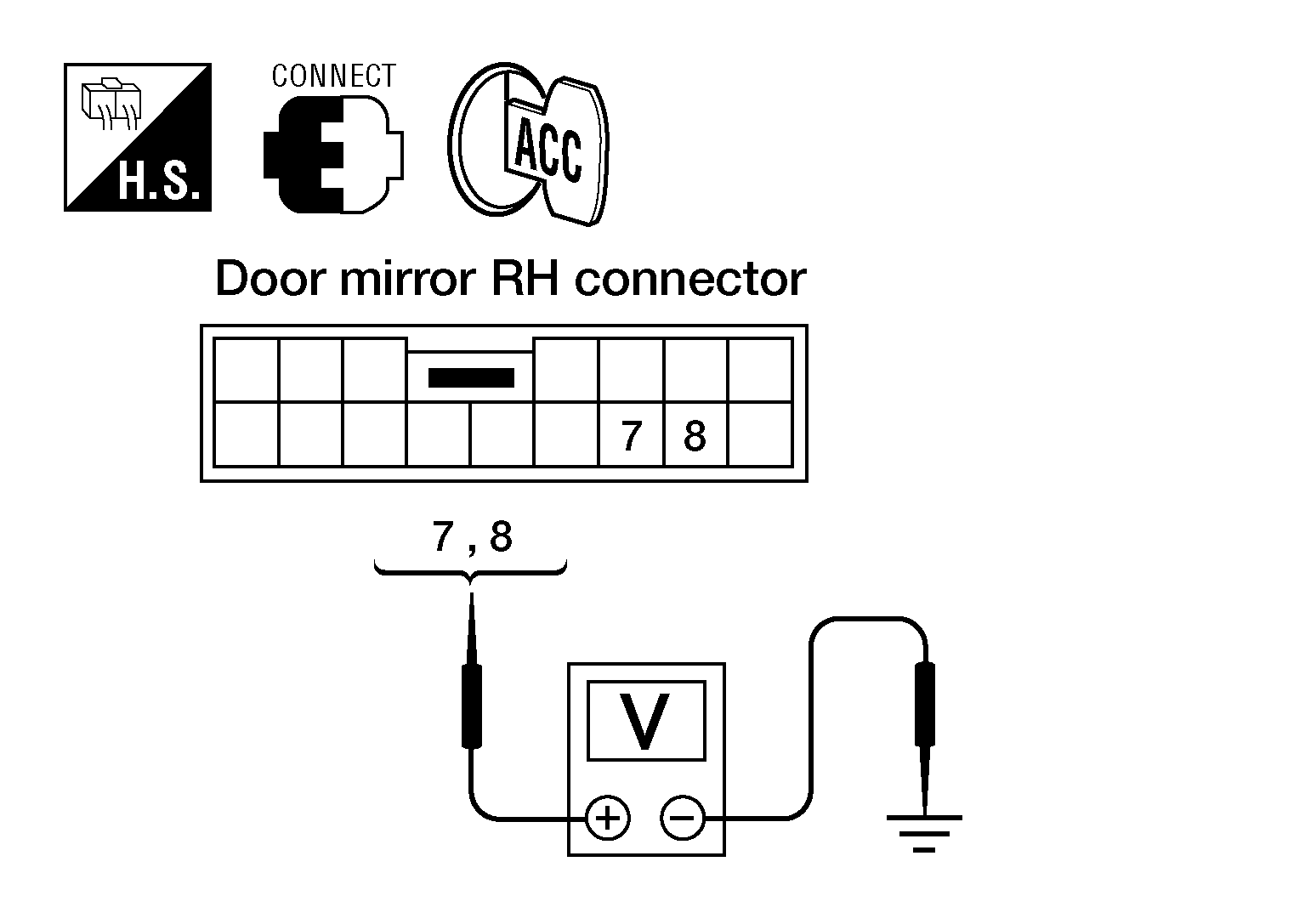

Fig 2: Identifying Voltage Between Door Mirror Rh Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Mirror sensor RH is OK.
NG : GO TO 3.

CHECK HARNESS CONTINUITY 1
1. Disconnect automatic drive positioner control unit and door mirror RH.
2. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door mirror RH connector D107 terminals 5, 6.
  33 - 5 : Continuity should exist.

  41 - 6 : Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and ground.
  33 - Ground : Continuity should not exist.

  41 - Ground : Continuity should not exist.

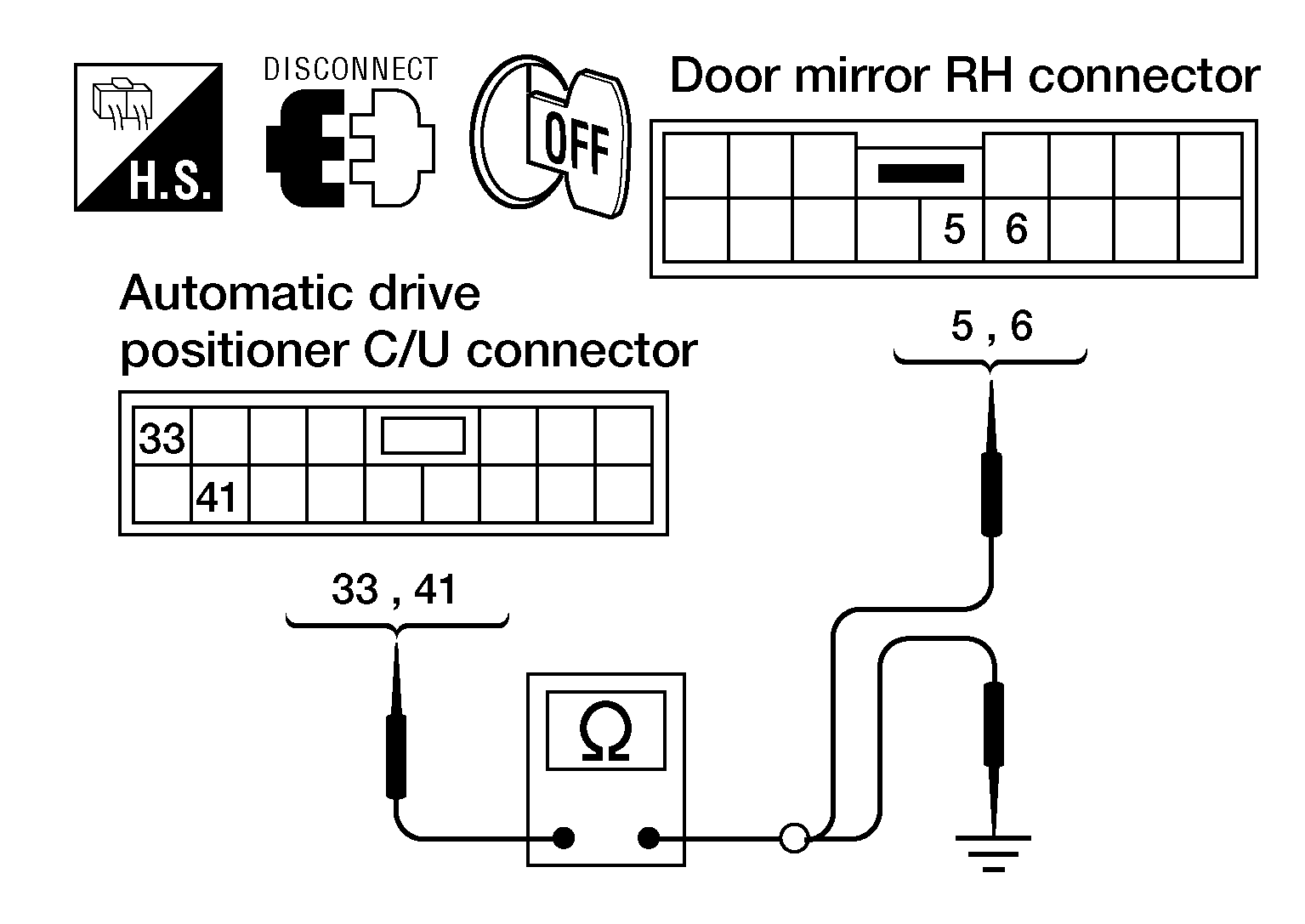

  Fig 3: Identifying Continuity Between Automatic Drive Positioner Control Unit Connector M34 Terminals 33, 41 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : GO TO 4.
- NG : Repair or replace harness.
CHECK HARNESS CONTINUITY 2
1. Disconnect automatic drive positioner control unit and door mirror RH.
2. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and door mirror RH connector D107 terminals 7, 8.
  5 - 7 : Continuity should exist.

  21 - 8 : Continuity should exist.
3. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and ground.
  5 - Ground : Continuity should not exist.

  21 - Ground : Continuity should not exist.

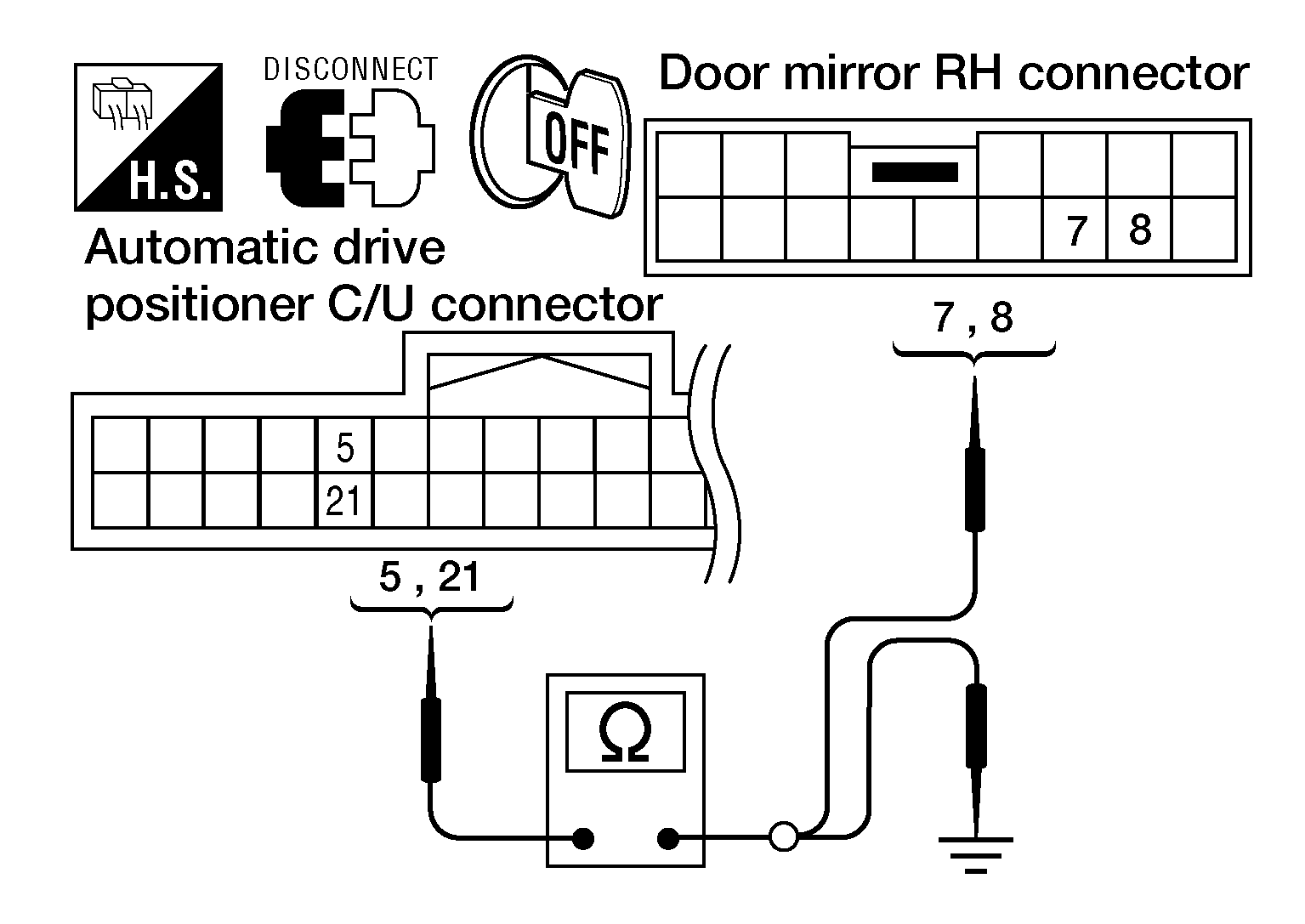

  Fig 4: Identifying Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 5, 21 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : Replace door mirror RH. Refer to "DOOR MIRROR ASSEMBLY ".
- NG : Repair or replace harness.
