Wiring Diagram - COMBSW -

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

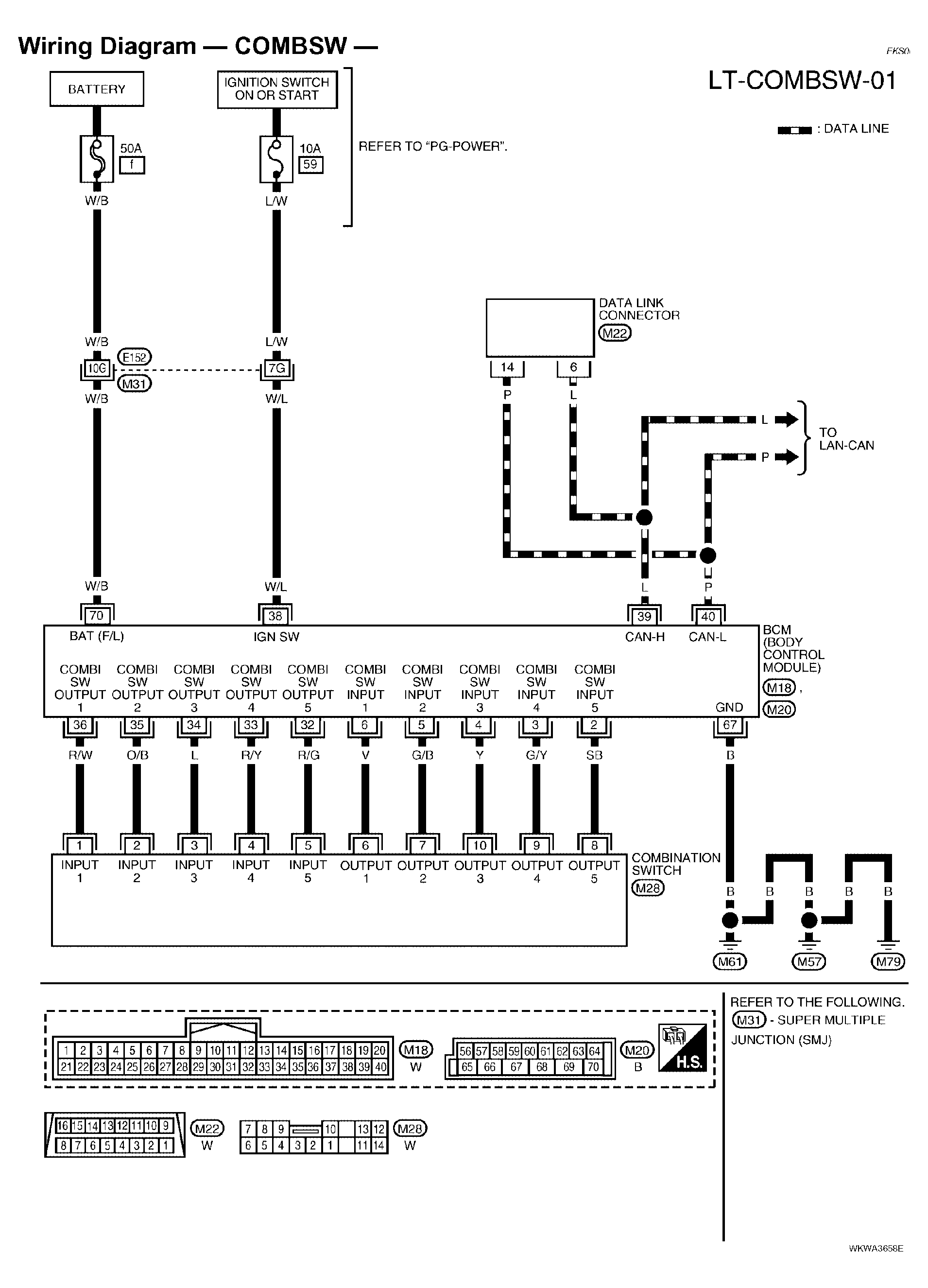

Fig 1: LT-COMBSW-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
