Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

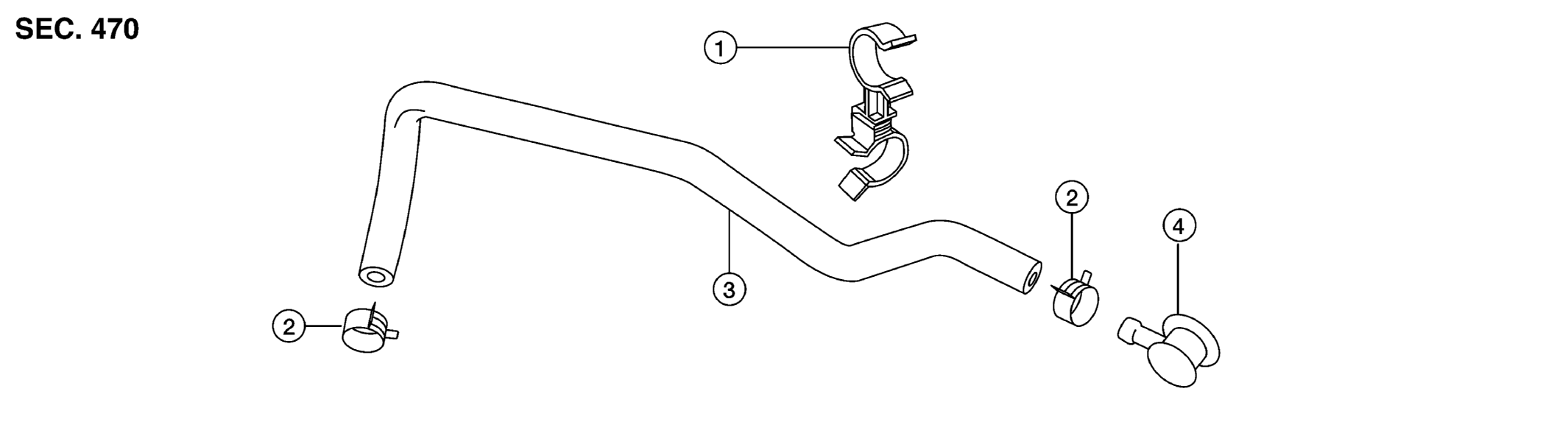

Fig 1: Identifying Vacuum Lines

Courtesy of NISSAN MOTOR CO., U.S.A.

Disconnect vacuum hose from hose clip.
Release clamps and disconnect vacuum hose.
Remove check valve from brake booster.
Installation is in the reverse order of removal.
CAUTION:
- Insert vacuum hose for at least 24 mm (0.94 in).
- Do not use lubricating oil during assembly.

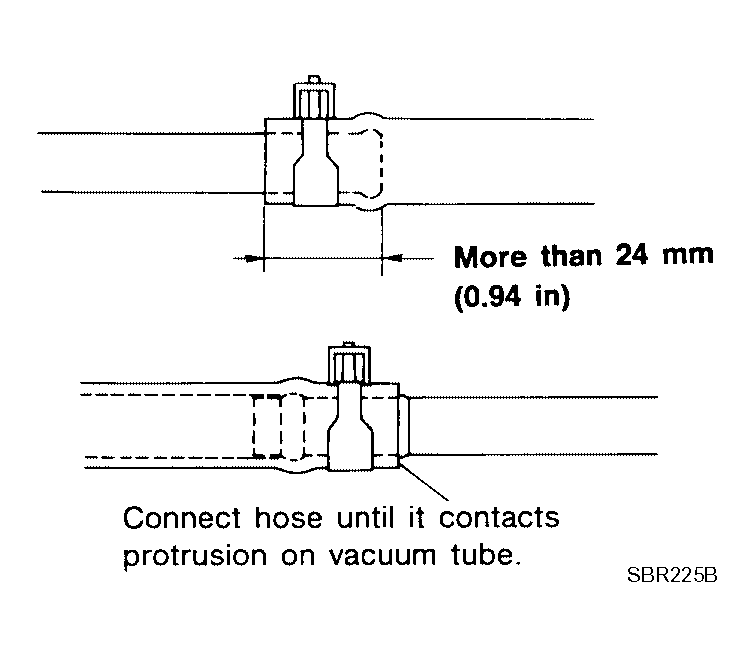

  Fig 2: Identifying Vacuum Hose Joints
  Courtesy of NISSAN MOTOR CO., U.S.A.
