Wiring Diagram - COMM -

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

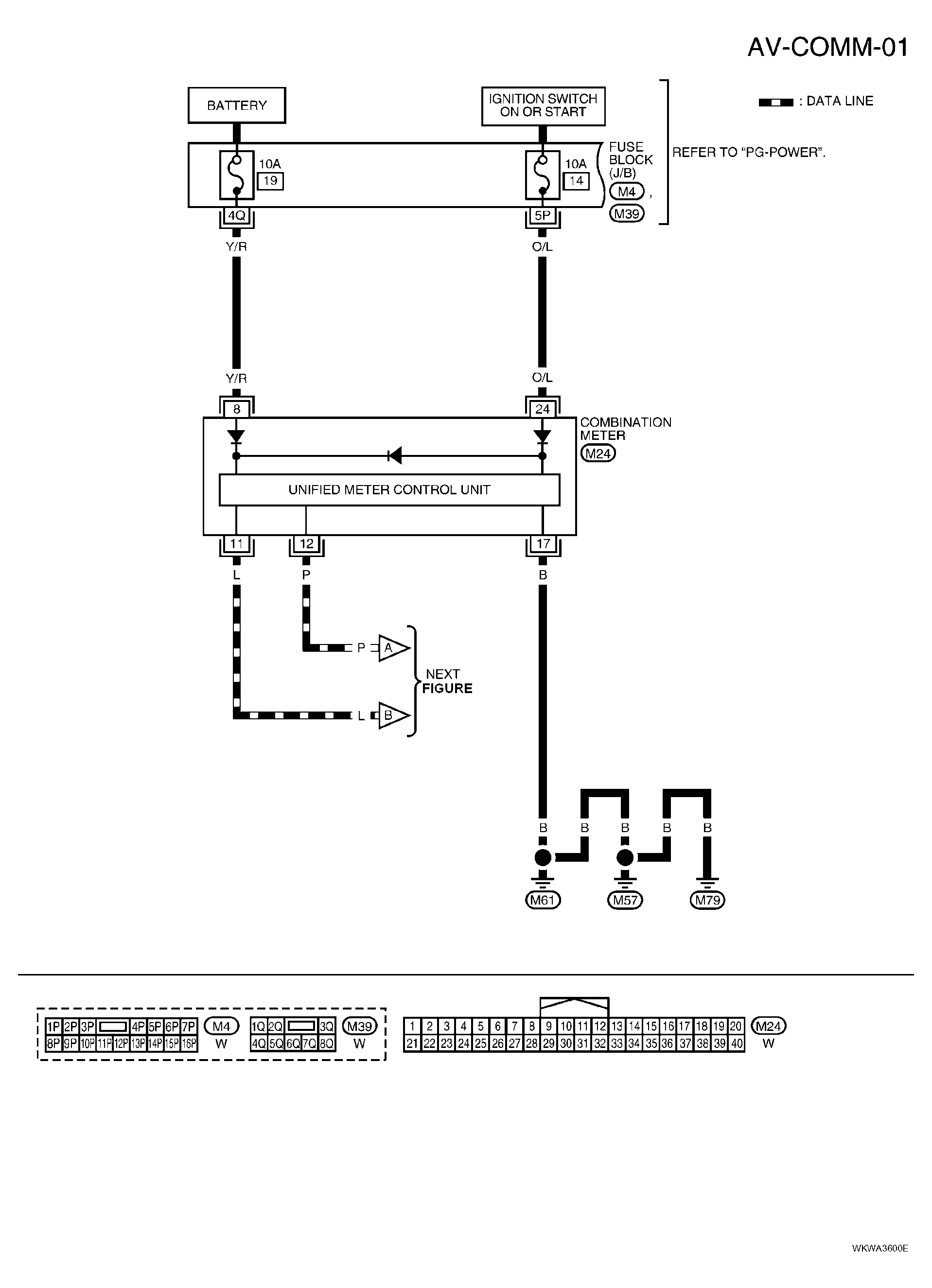

Fig 1: AV-COMM-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

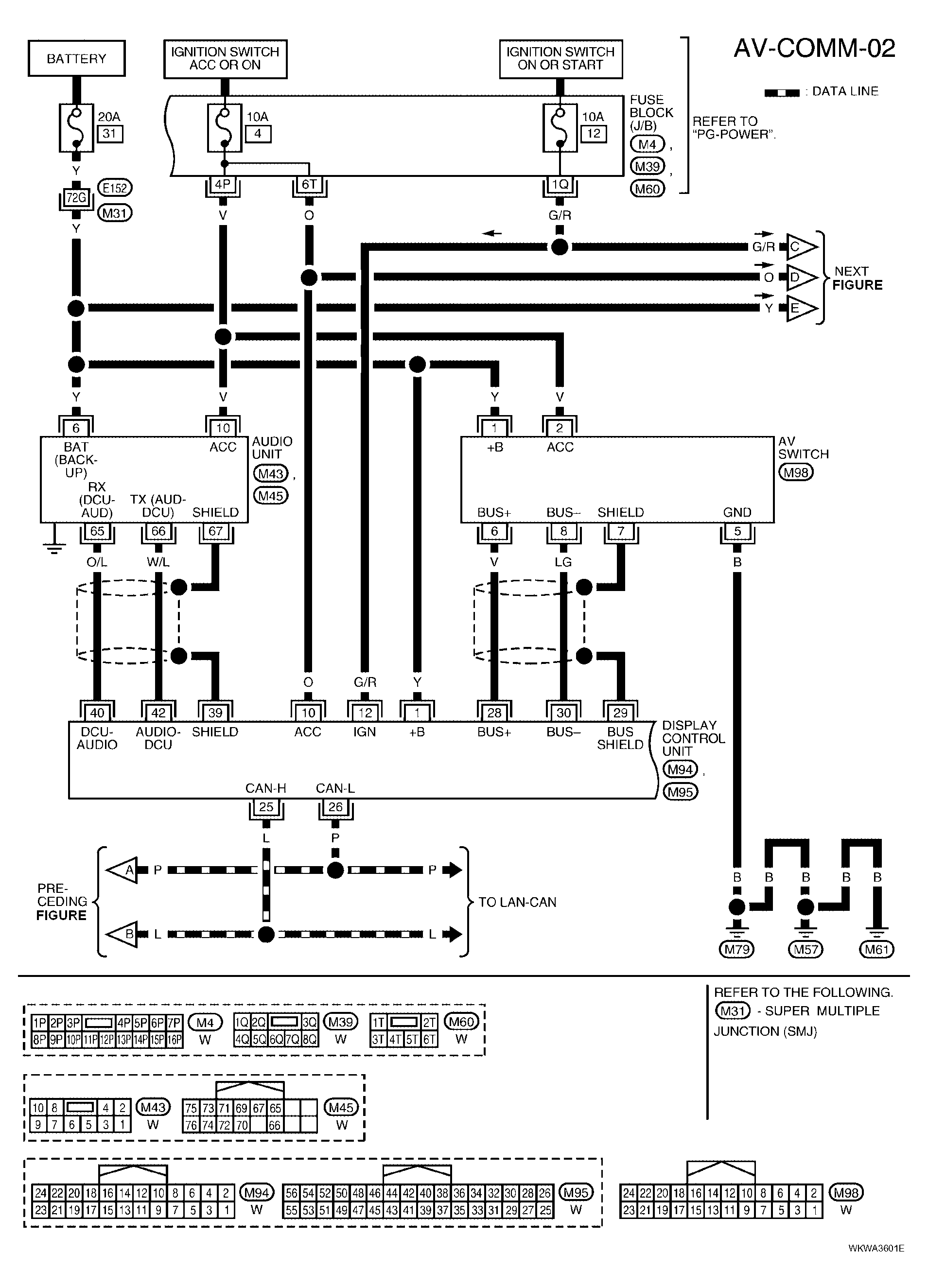

Fig 2: AV-COMM-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

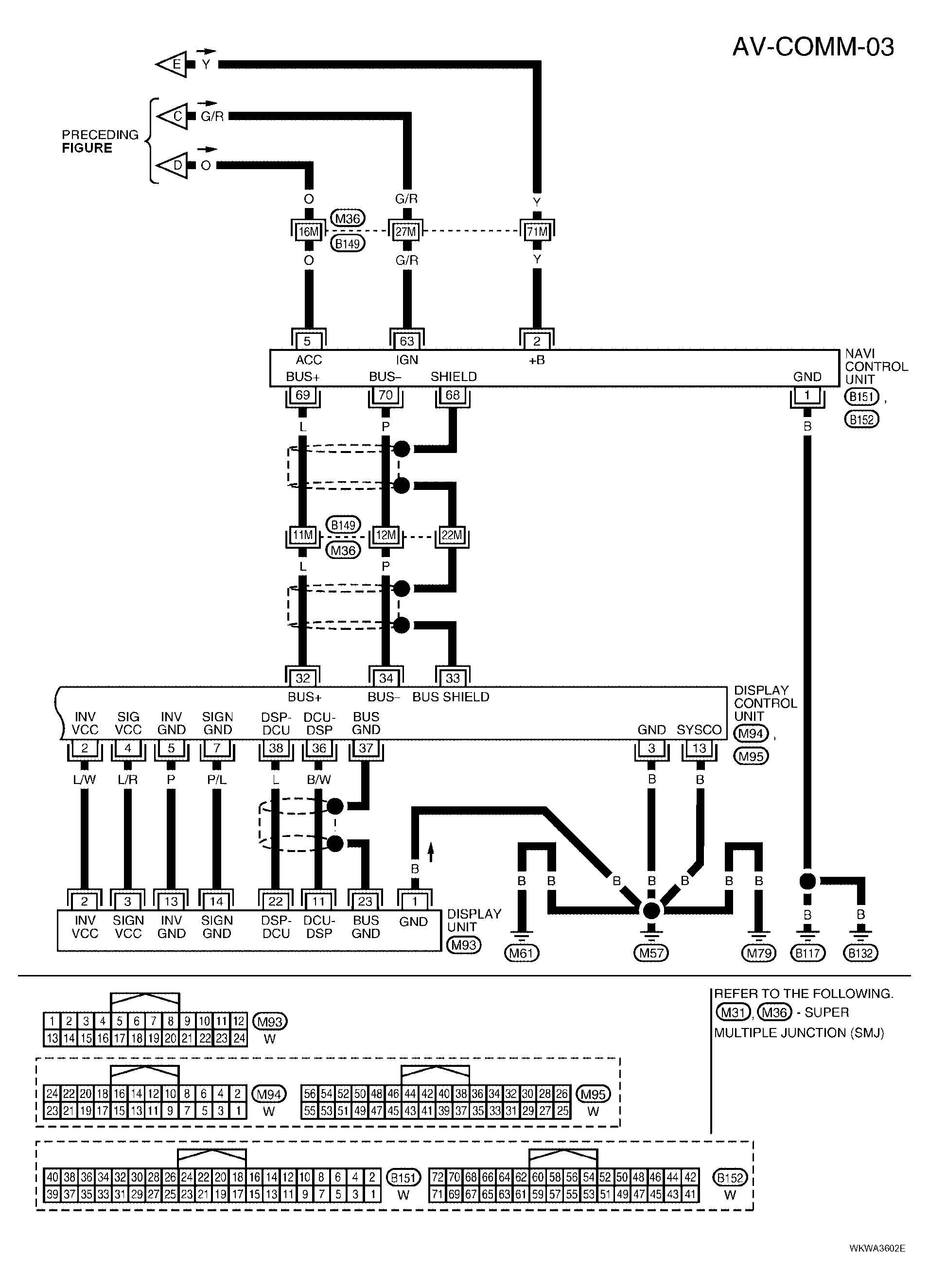

Fig 3: AV-COMM-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
