Checking Memory Function

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Set the temperature to 90°F or 32°C.
Turn front blower control dial counterclockwise until system shuts OFF.
Turn ignition switch OFF.
Turn ignition switch ON.

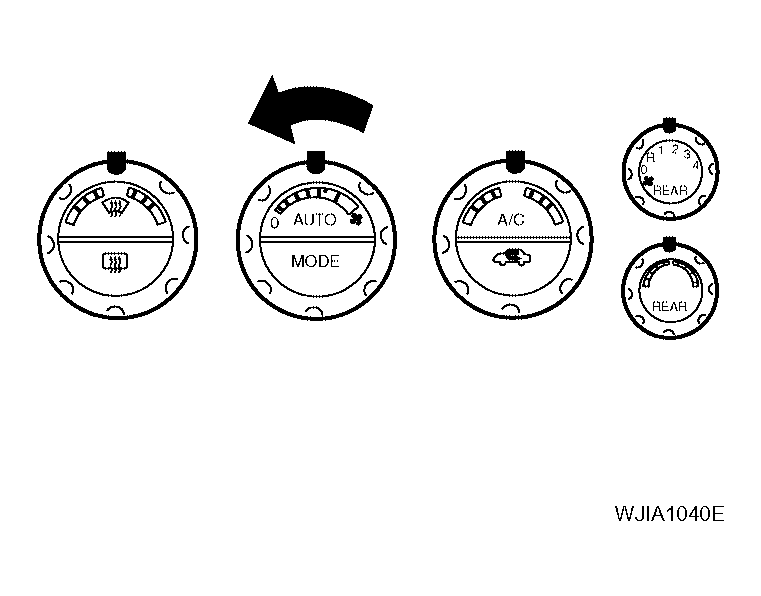

Fig 1: Turning Front Blower Control Dial Counterclockwise
Courtesy of NISSAN MOTOR CO., U.S.A.
Press the AUTO switch.
Confirm that the set temperature remains at previous temperature.

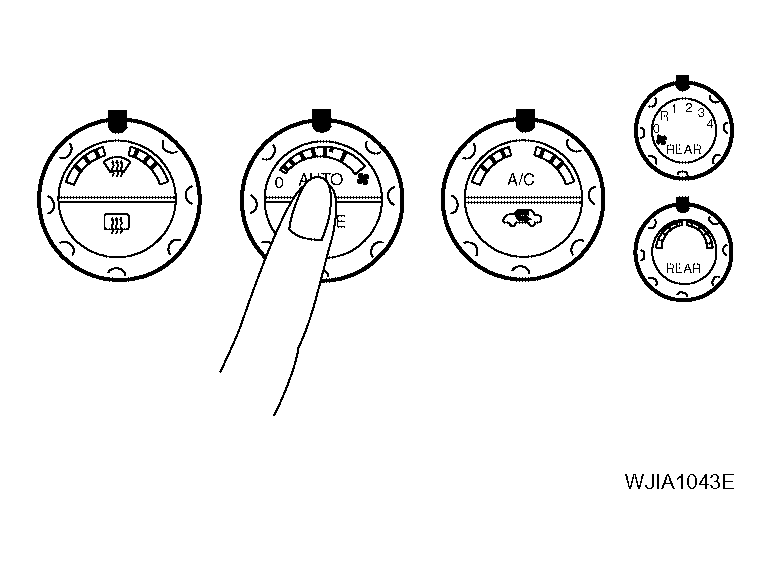

Fig 2: Pressing AUTO Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn front blower control counterclockwise until system shuts OFF.

If NG, go to trouble diagnosis procedure for "MEMORY FUNCTION ".

If OK, continue with next check.

Fig 3: Turning Front Blower Control Counterclockwise

Courtesy of NISSAN MOTOR CO., U.S.A.
