Front Air Control Terminals and Reference Value: Notes

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Measure voltage between each terminal and ground by following Terminals and Reference Value for front air control.

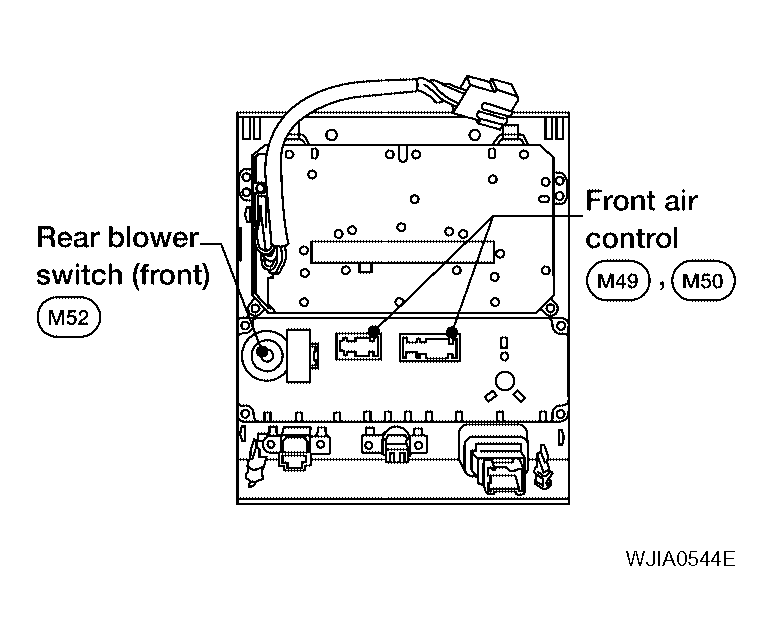

Fig 1: Identifying Front Air Control
G04135764Courtesy of NISSAN MOTOR CO., U.S.A.
