Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.

   Refer to "GROUND INSPECTION ".

   Fig 1: Checking Ground Connections

   Courtesy of NISSAN NORTH AMERICA, INC.

OK or NG

OK: GO TO 2.

NG: Repair or replace ground connections.

1. Disconnect electric throttle control actuator (1) harness connector.
   • Illustration shows the view with intake air duct removed.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals.

   Refer to WIRING DIAGRAM .

   TERMINALS CONTINUITY CHART



   Electric throttle control actuator terminal	ECM terminal	Continuity
   5	5	Should not exist
   	4	Should exist
   6	5	Should exist
   	4	Should not exist

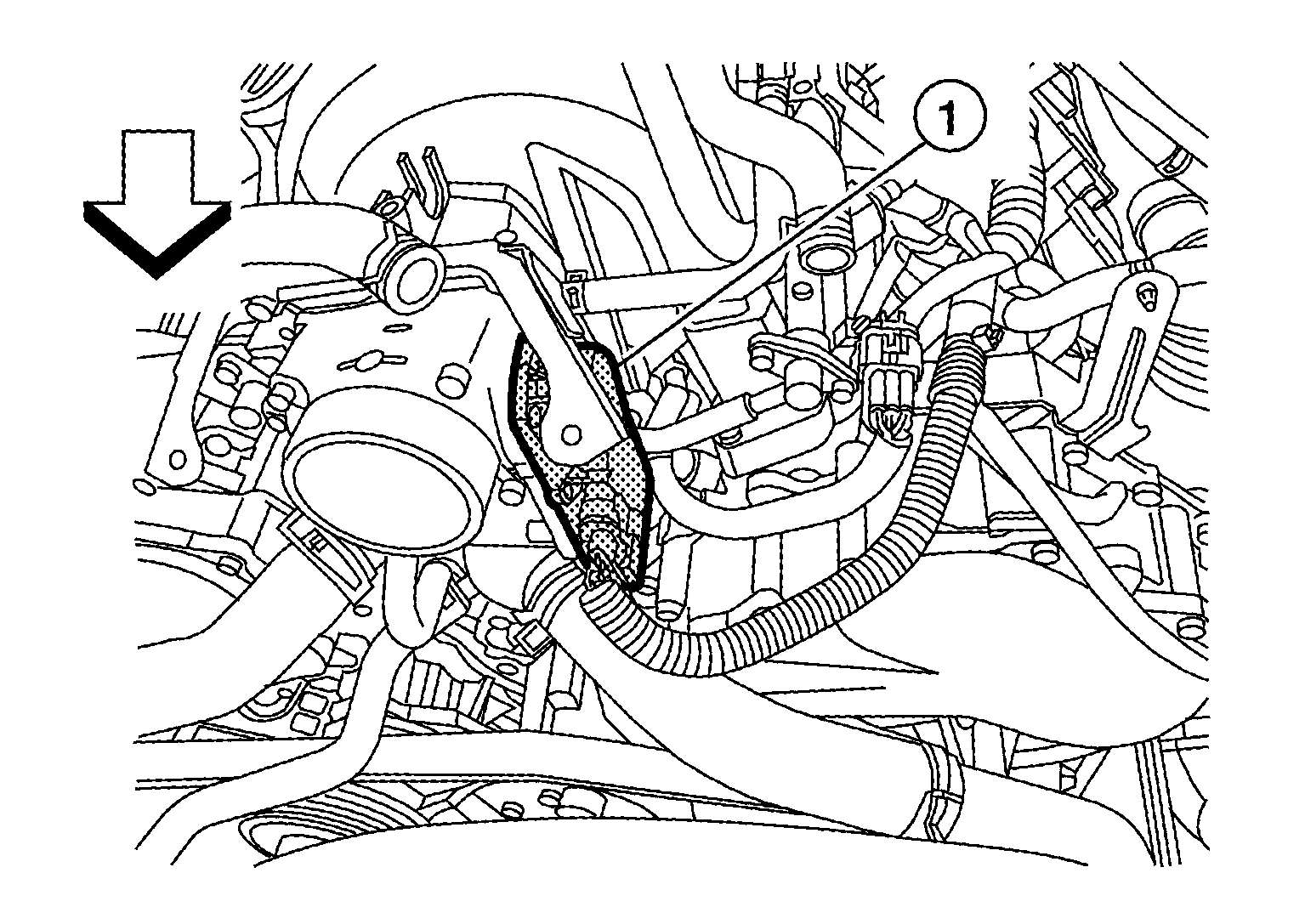

   Fig 2: Identifying Electric Throttle Control Actuator Harness Connector

   Courtesy of NISSAN NORTH AMERICA, INC.
4. Also check harness for short to ground and short to power.

OK or NG

OK: GO TO 3.

NG: Repair or replace.

Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 4.

NG: GO TO  5.

Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

OK or NG

OK: GO TO 5.

NG: Repair or replace harness or connectors.

1. Replace the electric throttle control actuator.
2. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
3. Perform "IDLE AIR VOLUME LEARNING ".

   INSPECTION END
