DTC P1217 Engine Over Temperature: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

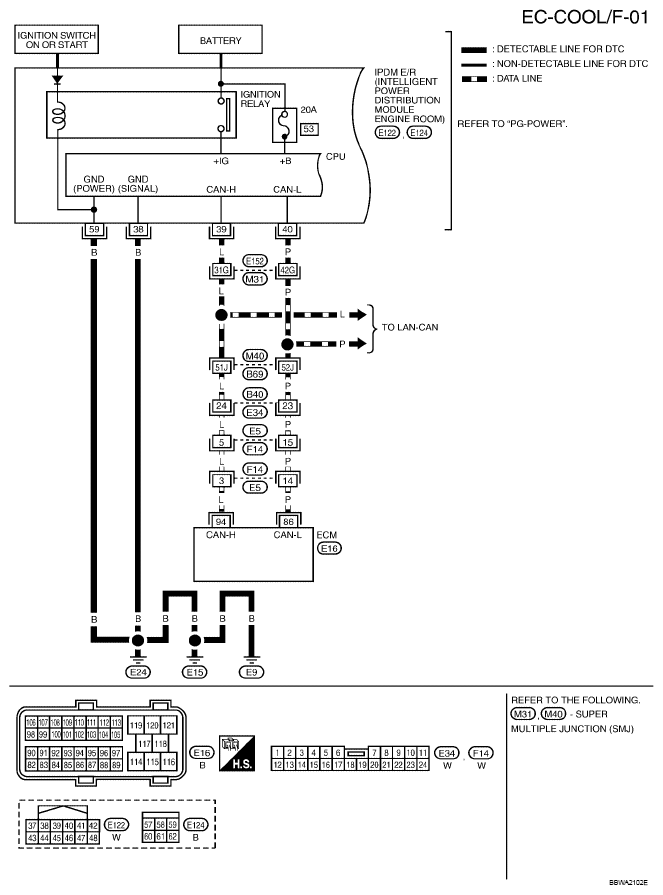

Fig 1: EC-COOL/F-01 - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: EC-COOL/F-02 - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
