DTC P0340 CMP Sensor (Phase): Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

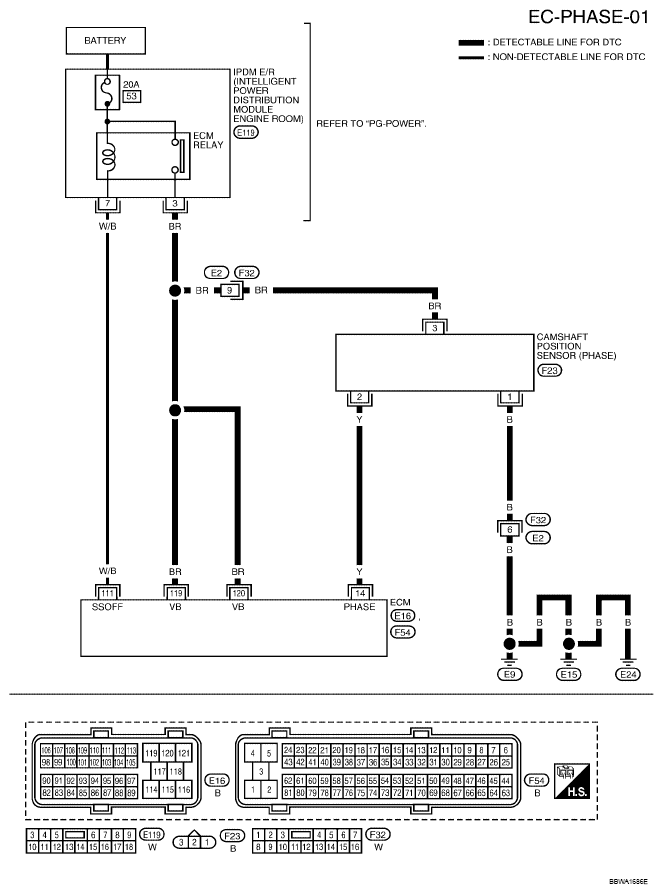

Fig 1: EC-PHASE-01 - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

INPUT/OUTPUT VOLTAGE CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
14	Y	Camshaft position sensor (PHASE)	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on rpm at idle.	Courtesy of NISSAN NORTH AMERICA, INC.
14	Y	Camshaft position sensor (PHASE)	[Engine is running] Engine speed: 2, 000 rpm.	Courtesy of NISSAN NORTH AMERICA, INC.
111	W/B	ECM relay (Self shut-off)	[Engine is running] [Ignition switch: OFF] For a few seconds after turning ignition switch OFF	0 - 1.5V
111	W/B	ECM relay (Self shut-off)	[Ignition switch: OFF] More than a few seconds after turning ignition switch OFF	BATTERY VOLTAGE (11 - 14V)
119 120	BR BR	Power supply for ECM	[Ignition switch: ON]	BATTERY VOLTAGE (11 - 14V)
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
