DTC P0181 FTT Sensor: Wiring Diagram

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

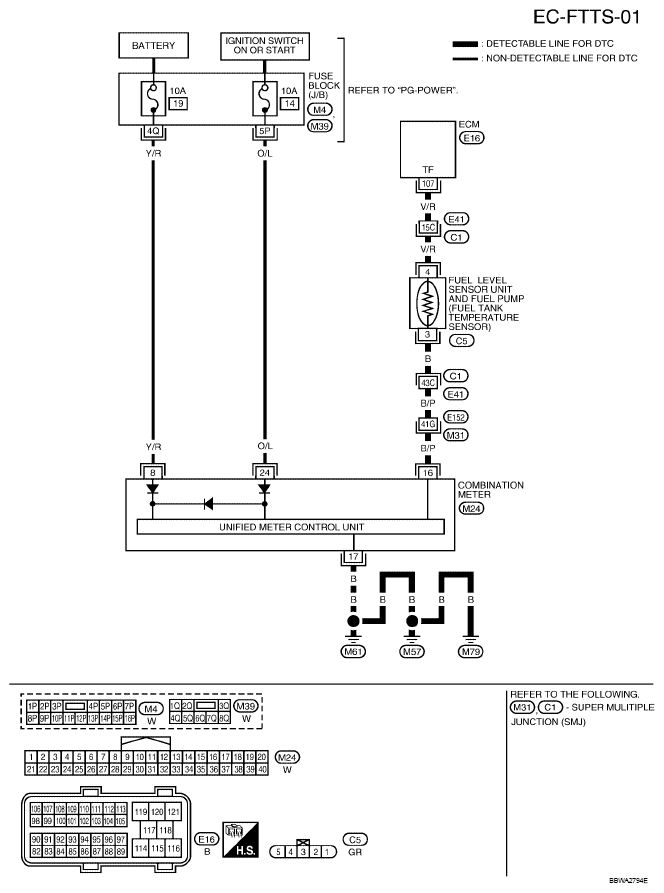

Fig 1: Wiring Diagram - EC-FTTS-01

G05228752

Courtesy of NISSAN NORTH AMERICA, INC.
