Home >> Infiniti >> 2007 >> QX56 AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pump >> Removal and Installation >> Notes

Removal and Installation: Notes

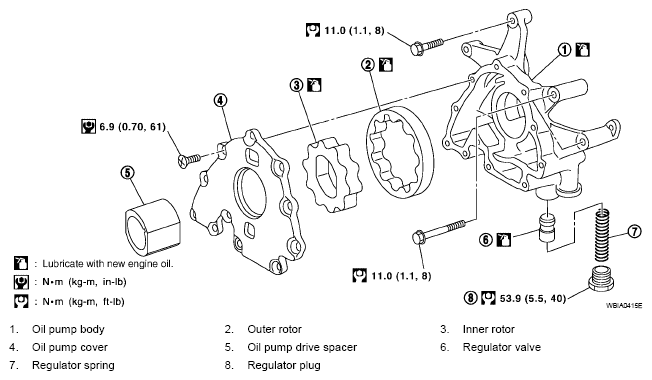

Fig 1: Oil Pump Replacement Components With Torque Specifications

G05228304

Courtesy of NISSAN MOTOR CO., U.S.A.
