LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2007
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Lubrication System
>>
Lubrication Circuit
Lubrication Circuit

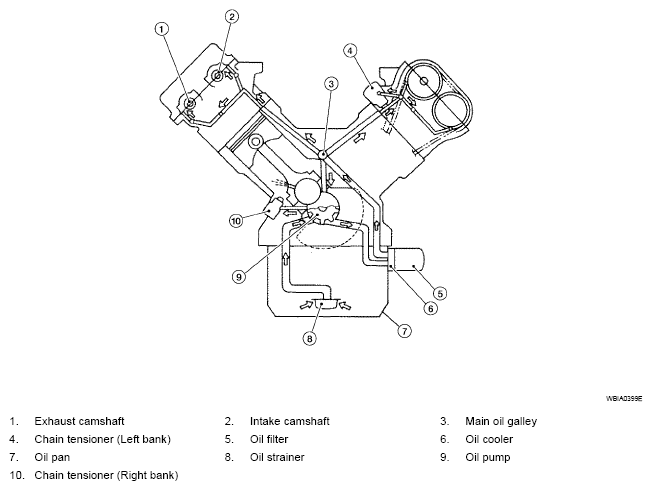

Fig 1: Identifying Lubrication Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
