Home >> Infiniti >> 2007 >> M45 >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> On-Vehicle Service >> Revolution Sensor Components (2WD Models Only) >> Removal And Installation >> Components

Removal And Installation: Components

Refer to COMPONENTS .

Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

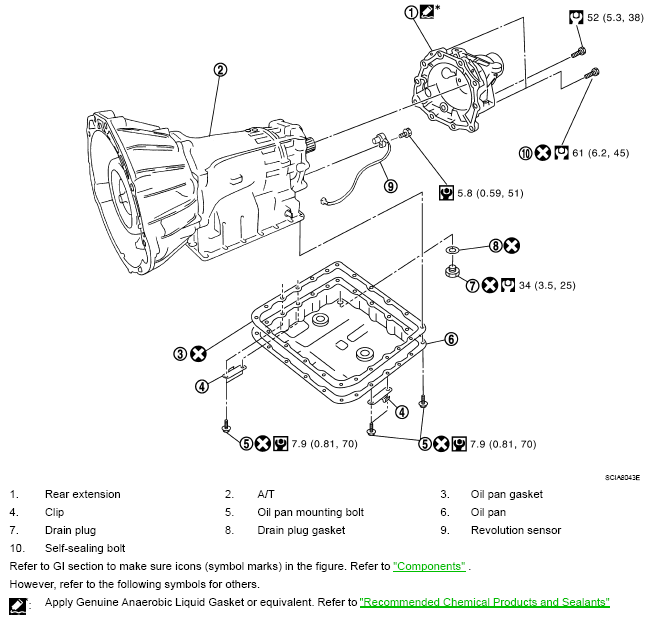

Fig 1: Revolution Sensor Replacement Components (2WD Models) With Torque Specifications
G05213455

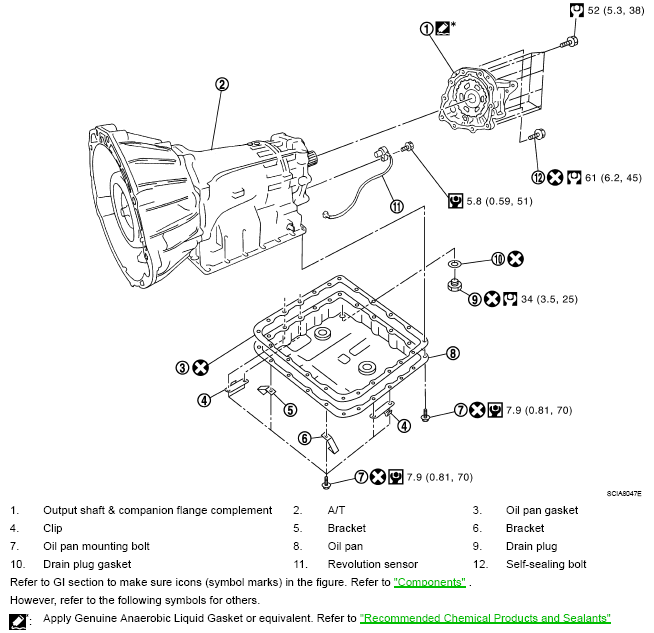

Fig 2: Revolution Sensor Replacement Components (VKD45DE Models) With Torque Specifications
G05213456
