Control Valve, TCM and A/T Fluid Temperature Sensor 2: Components

Refer to COMPONENTS .

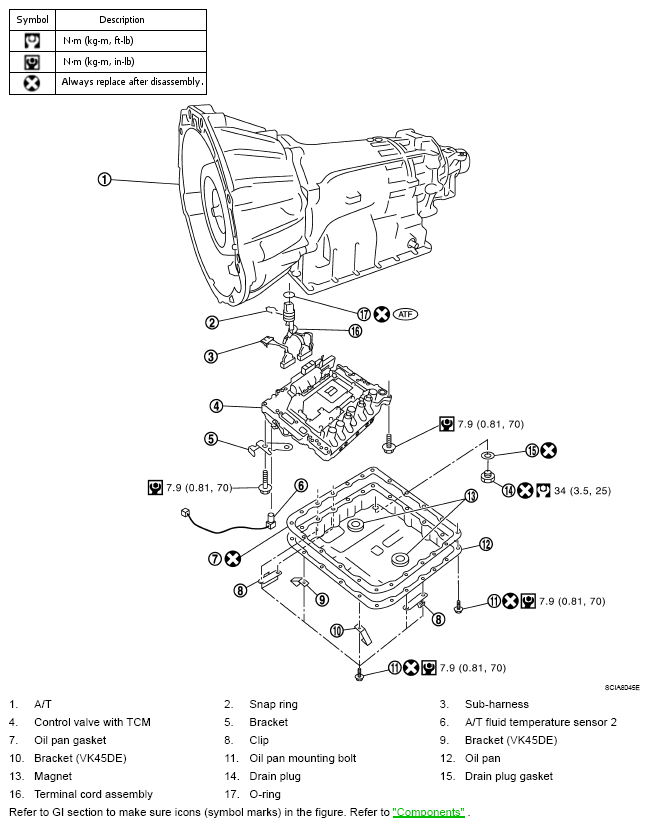

Fig 1: Control Valve With TCM And A/T Fluid Temperature Sensor 2 Replacement Components With Torque Specifications
G05213356
