Home >> Infiniti >> 2007 >> M35 Base >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> A/T Control System >> Cross-Sectional View (VK45DE Models For 2WD)

Cross-Sectional View (VK45DE Models For 2WD)

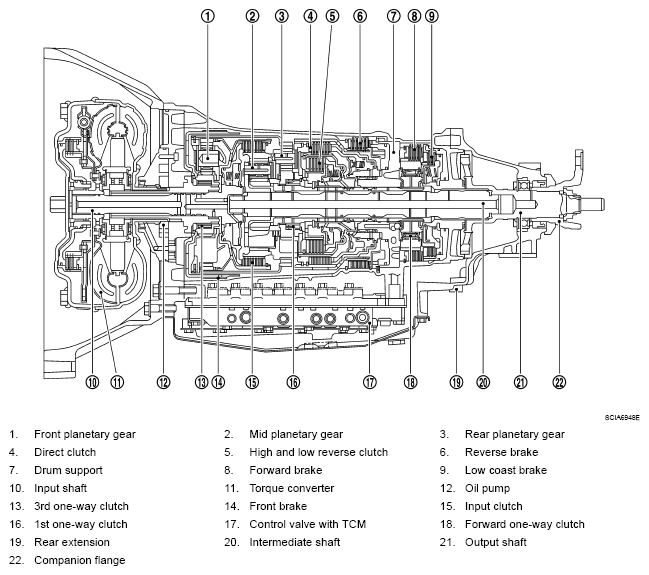

Fig 1: Identifying A/T Control System - Cross-Sectional View (VK45DE Models for 2WD)

G05213167
