VQ35DE Engine Models: Notes

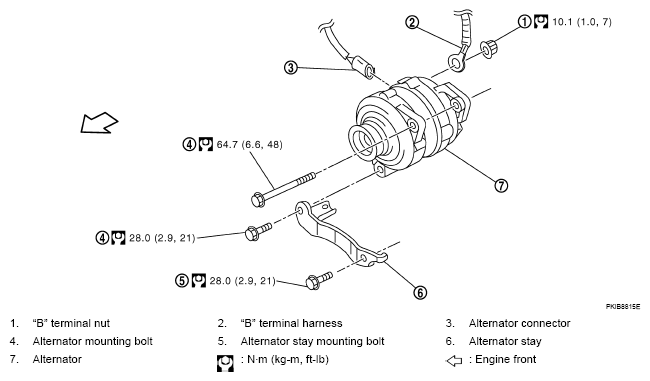

Fig 1: Charging System Replacement Components Engine Models With Torque Specifications (VQ35DE)

G05214206
