Removal and Installation: Components

Refer to COMPONENTS .

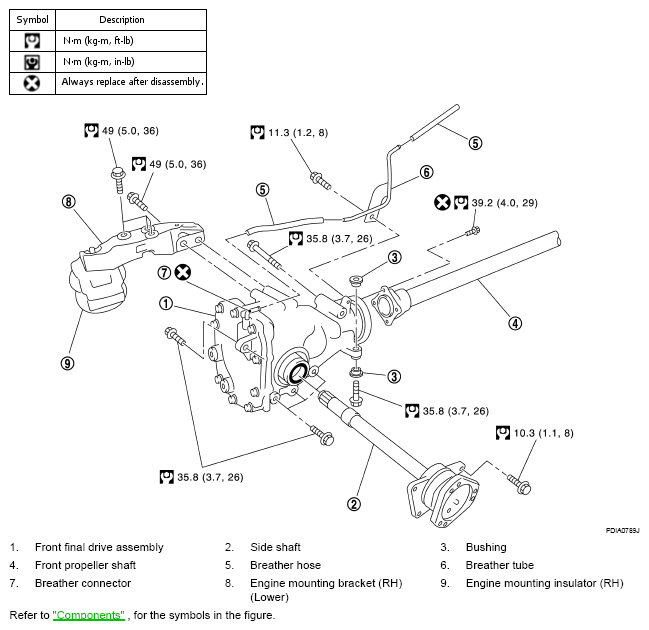

Fig 1: Exploded View Of Front Final Drive Assembly Components With Torque Specifications

G05211415
