Home >> Infiniti >> 2007 >> M35 Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Rear Seat >> Bench Seat Components

Bench Seat Components

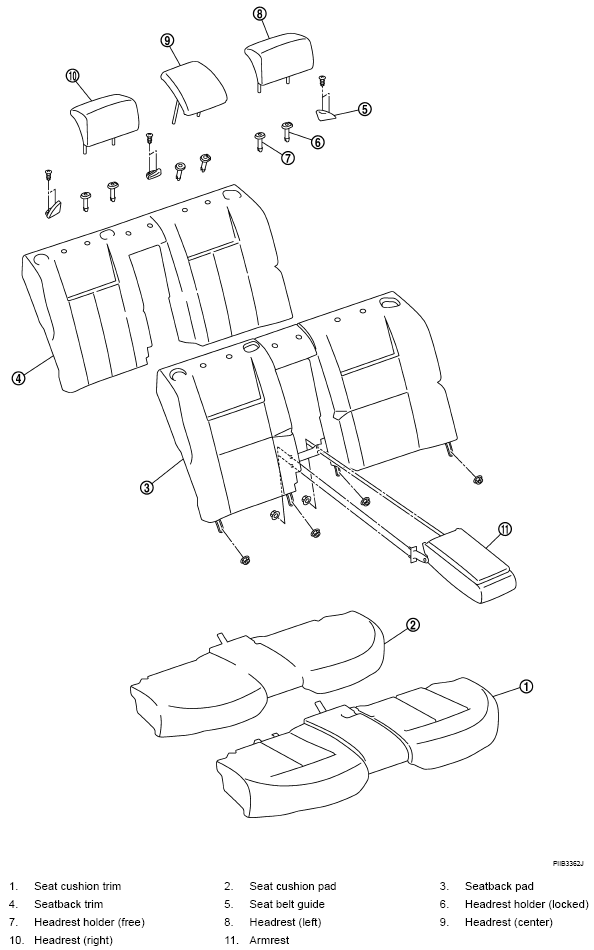

Fig 1: Exploded View Of Rear Bench Seat Components

G05213129
