Wiring Diagram - ENG/ST -

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

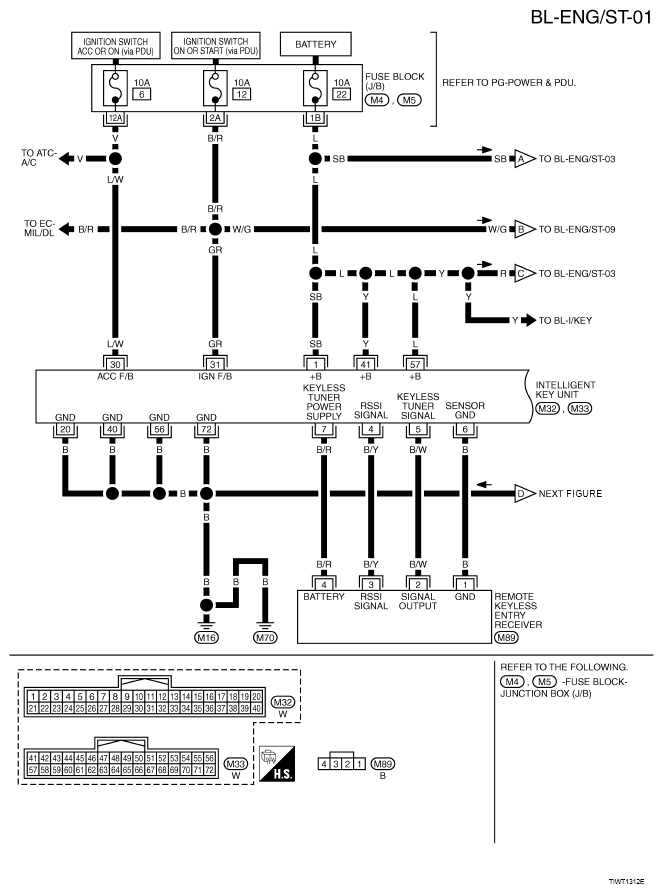

Fig 1: Wiring Diagram - ENG/ST - BL-ENG/ST-01
G05212296

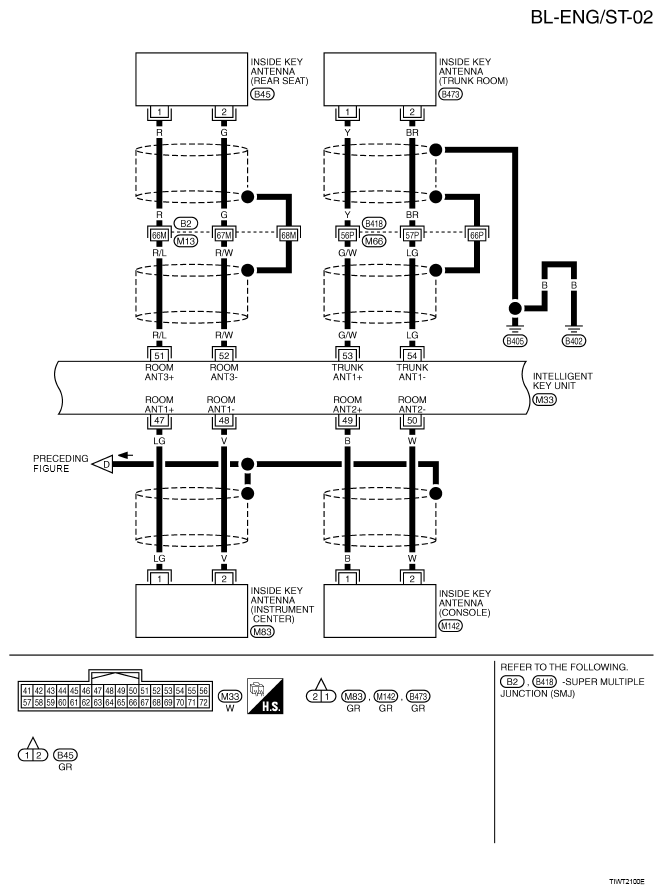

Fig 2: Wiring Diagram - ENG/ST - BL-ENG/ST-02
G05212297

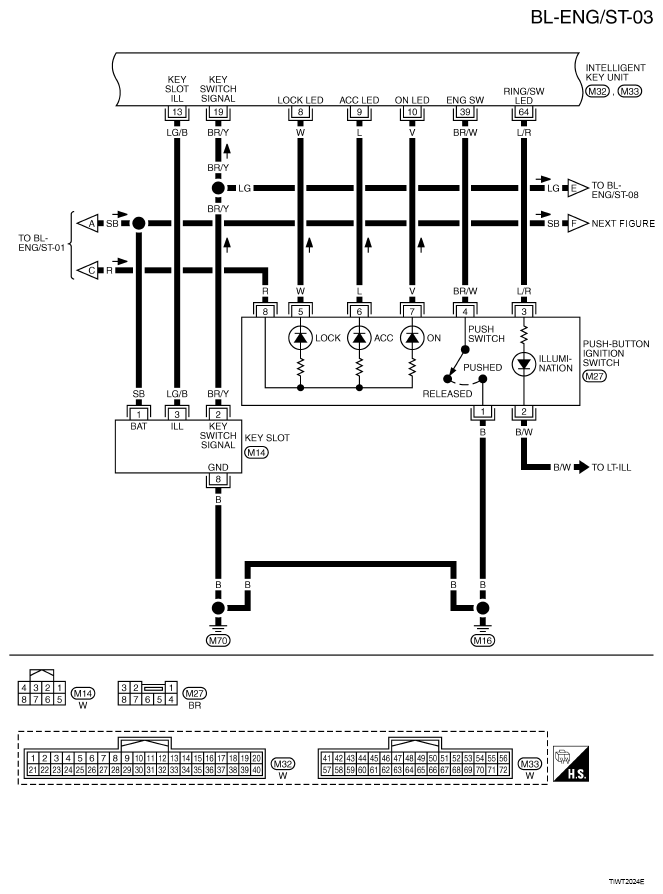

Fig 3: Wiring Diagram - ENG/ST - BL-ENG/ST-03
G05212298

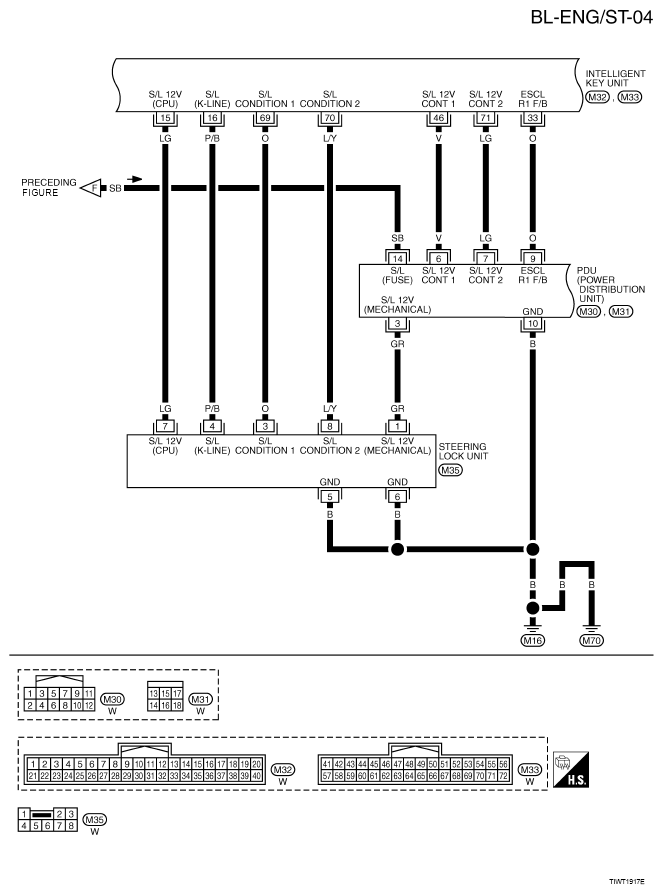

Fig 4: Wiring Diagram - ENG/ST - BL-ENG/ST-04
G05212299

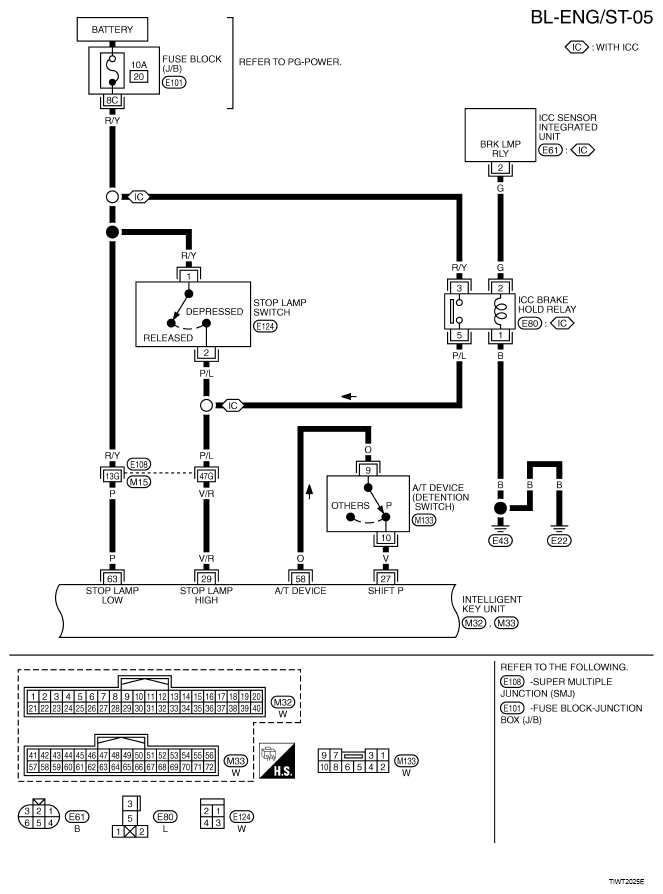

Fig 5: Wiring Diagram - ENG/ST - BL-ENG/ST-05
G05212300

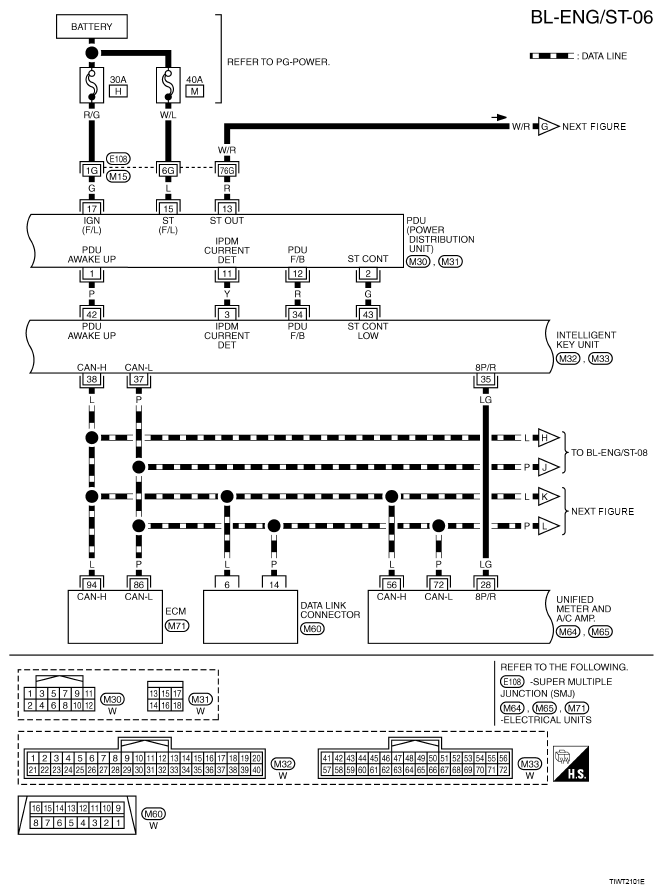

Fig 6: Wiring Diagram - ENG/ST - BL-ENG/ST-06
G05212301

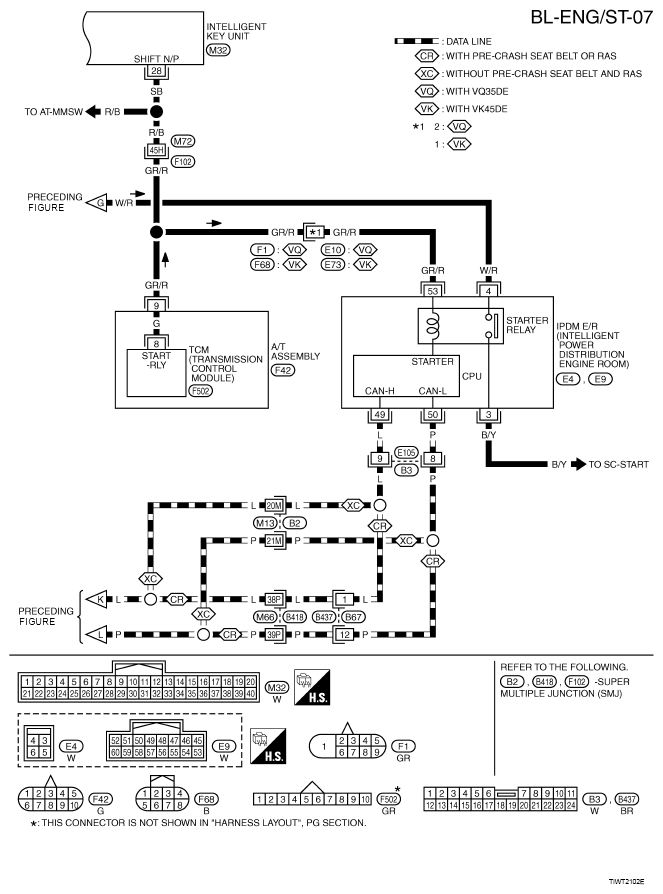

Fig 7: Wiring Diagram - ENG/ST - BL-ENG/ST-07
G05212302

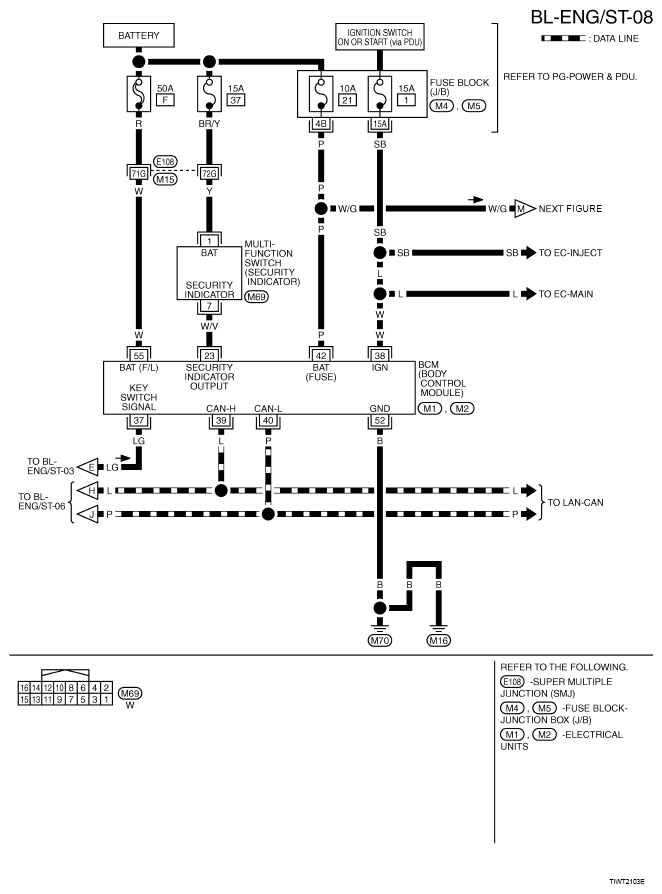

Fig 8: Wiring Diagram - ENG/ST - BL-ENG/ST-08
G05212303

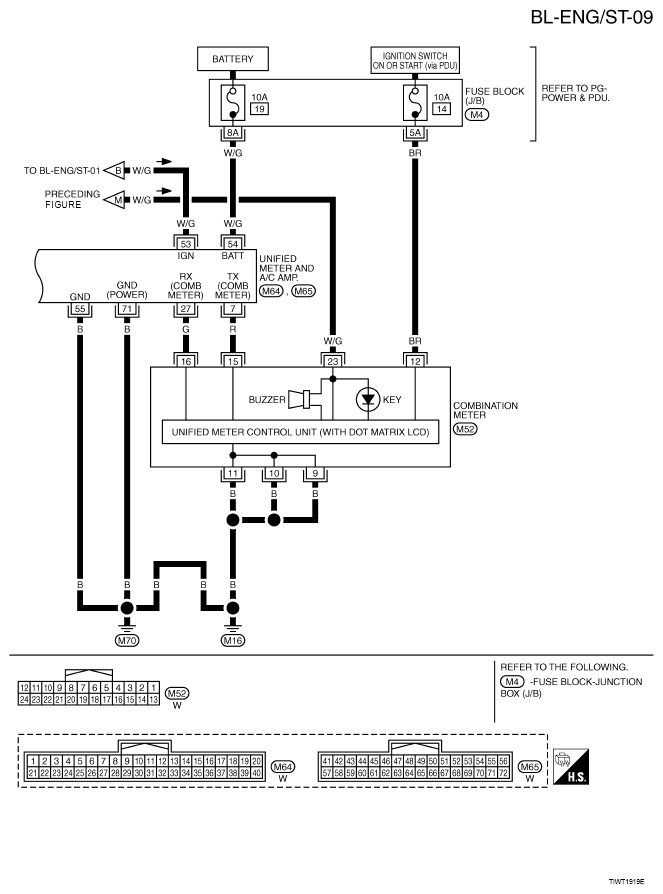

Fig 9: Wiring Diagram - ENG/ST - BL-ENG/ST-09
G05212304
