Exploded View

A. & B. See Removal and Installation

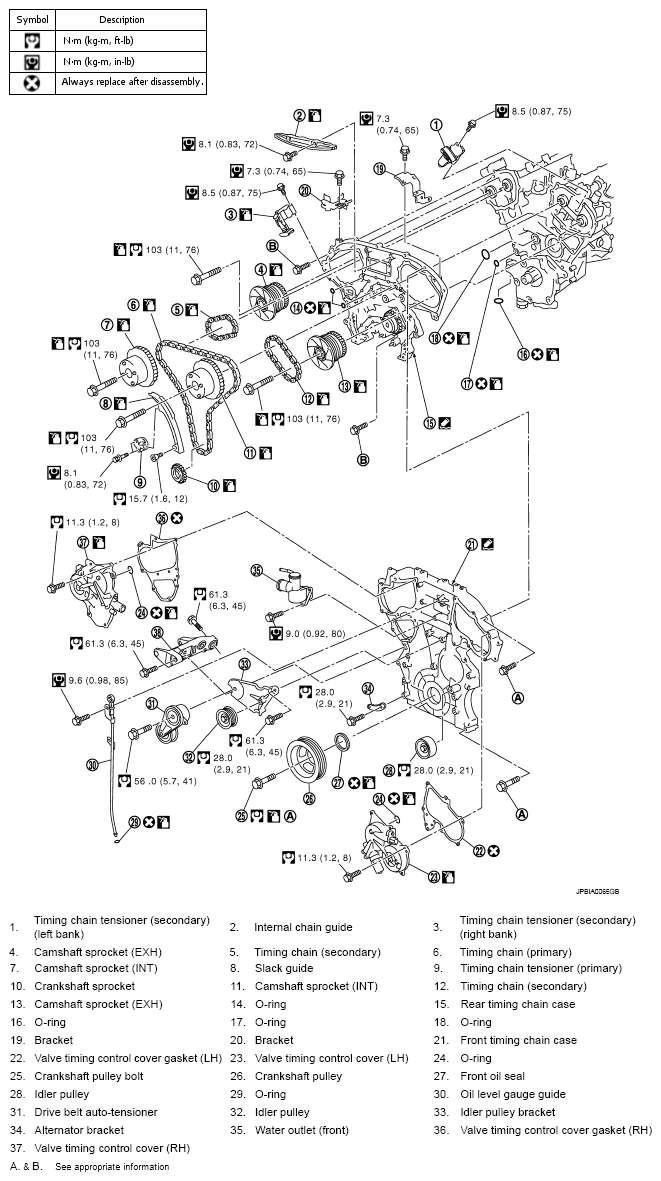

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G05207234

Refer to "COMPONENTS " for symbol marks in the figure.
