Exploded View

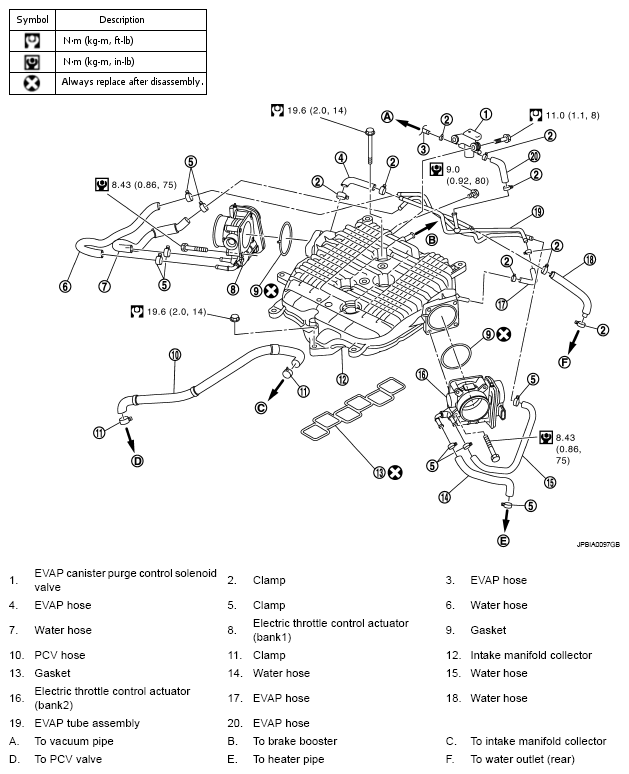

Fig 1: Exploded View Of Intake Manifold Collector With Torque Specifications

G05207194

Refer to "COMPONENTS " for symbol marks in the figure.
