Exploded View

B. See IGNITION COIL, SPARK PLUG AND ROCKER COVER .

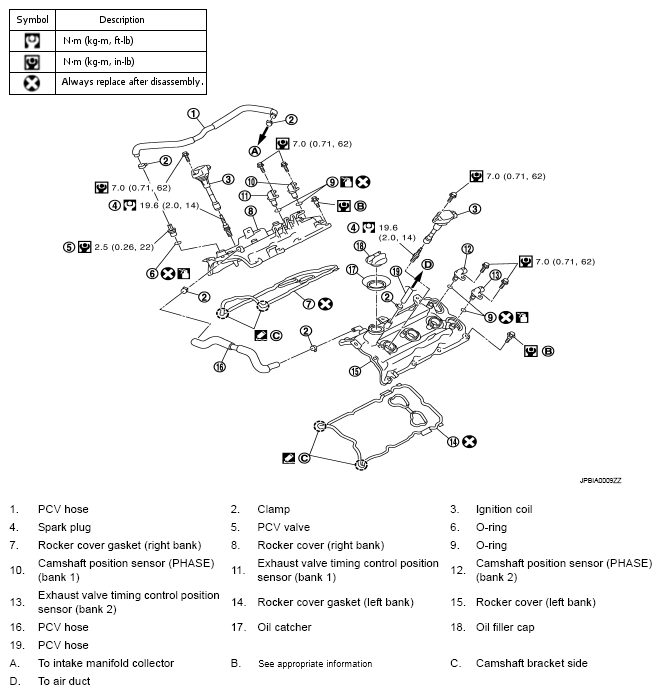

Fig 1: Exploded View Of Ignition Coil, Spark Plug And Rocker Cover With Torque Specifications
G05207229

Refer to "COMPONENTS " for symbol marks in the figure.
