Exploded View

A. See CAMSHAFT .

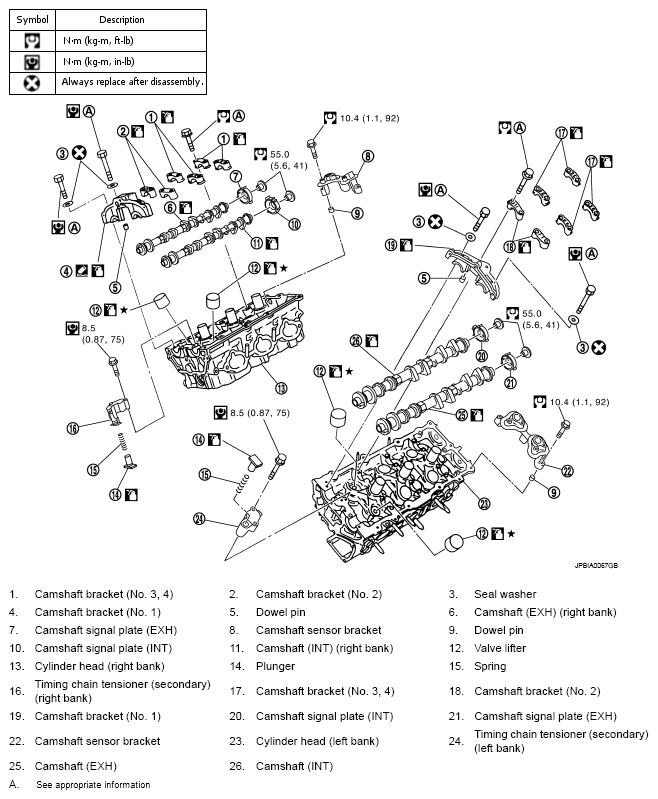

Fig 1: Exploded View Of Camshaft With Torque Specifications

G05207280

Refer to "COMPONENTS " for symbol marks in the figure.
