Exploded View

A. See INSPECTION AFTER INSTALLATION .

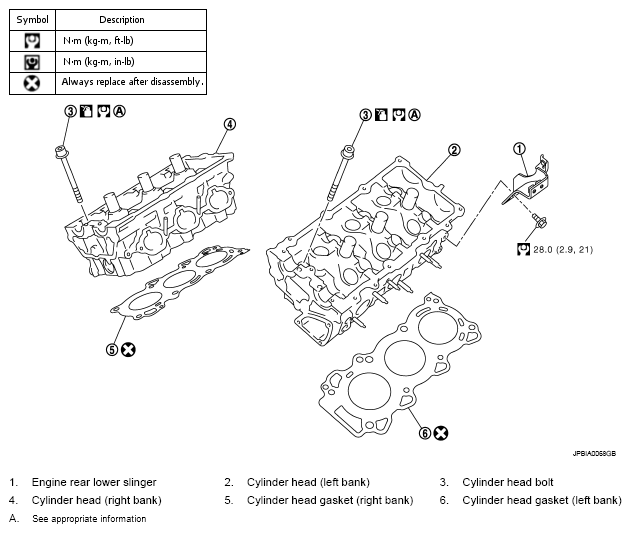

Fig 1: Exploded View Of Cylinder Head With Torque Specifications
G05207357

Refer to "COMPONENTS " symbols not described on the above.

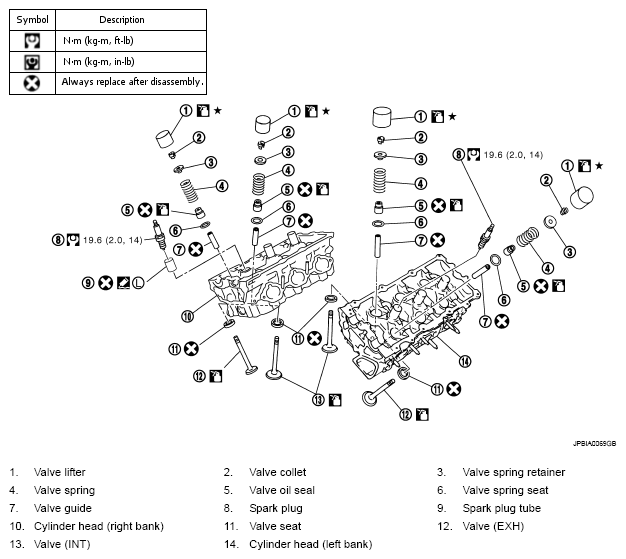

Fig 2: Exploded View Of Cylinder Head With Torque Specifications
G05207358

Refer to "COMPONENTS " for symbol marks in the figure.
