Component Parts Location

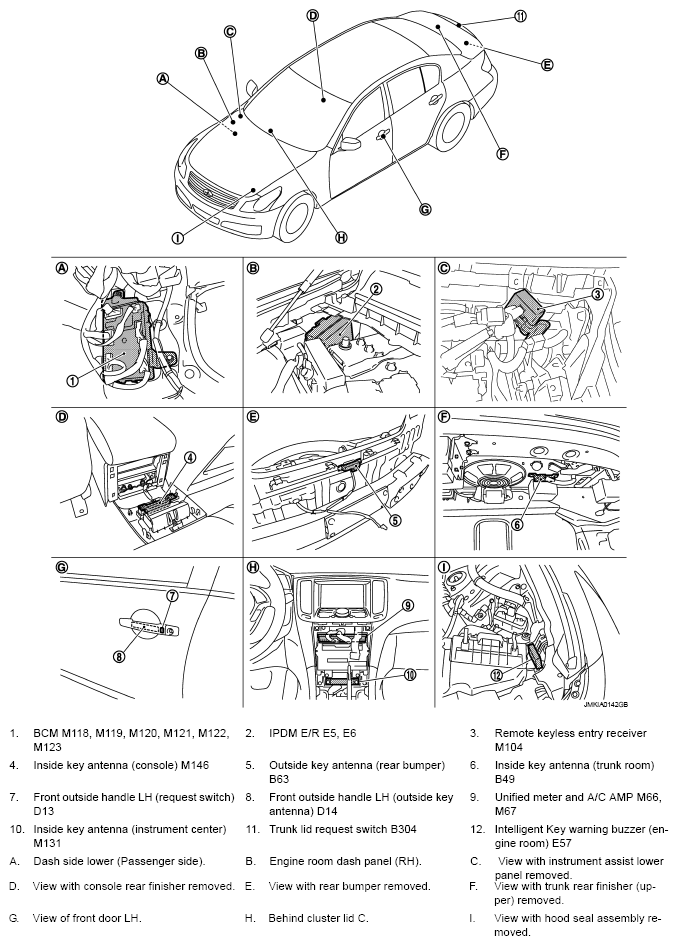

Fig 1: Identifying Infiniti Vehicle Immobilizer System-Nats Component Location (1 Of 3)
G05226925

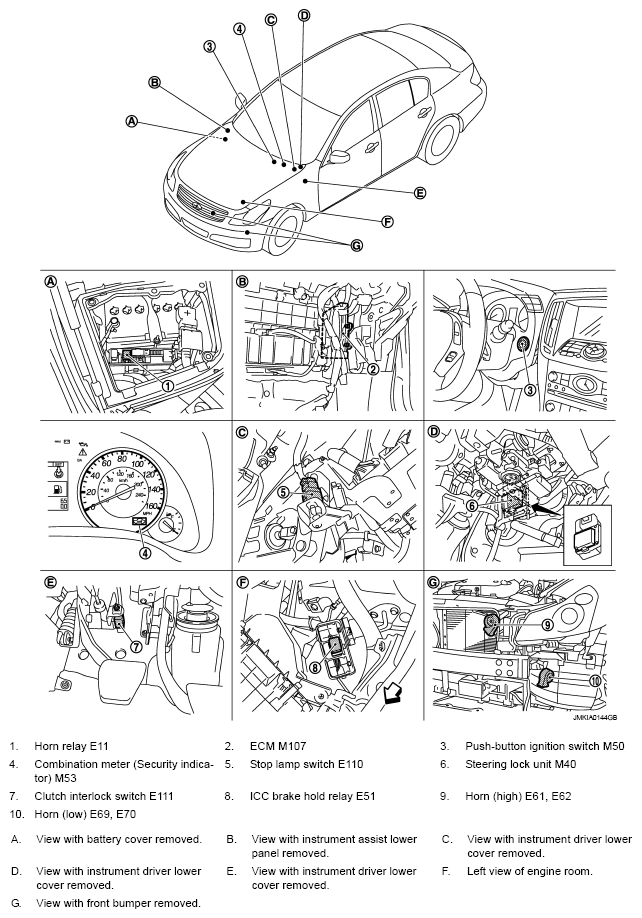

Fig 2: Identifying Infiniti Vehicle Immobilizer System-Nats Component Location (2 Of 3)
G05226926

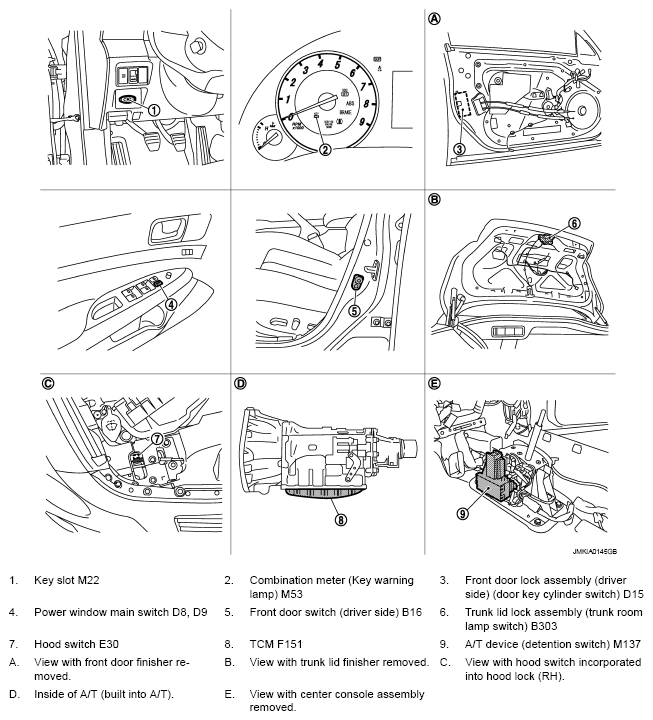

Fig 3: Identifying Infiniti Vehicle Immobilizer System-Nats Component Location (3 Of 3)
G05226927
