Component Parts Location

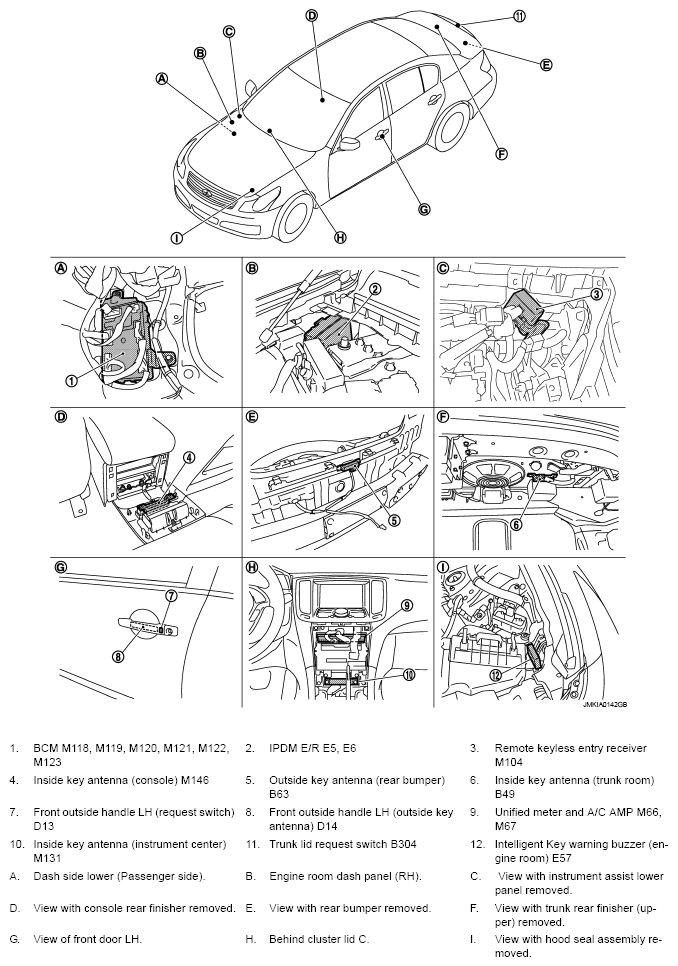

Fig 1: Identifying Intelligent Key System/Engine Start Function Component Location (1 Of 3)
G05226921

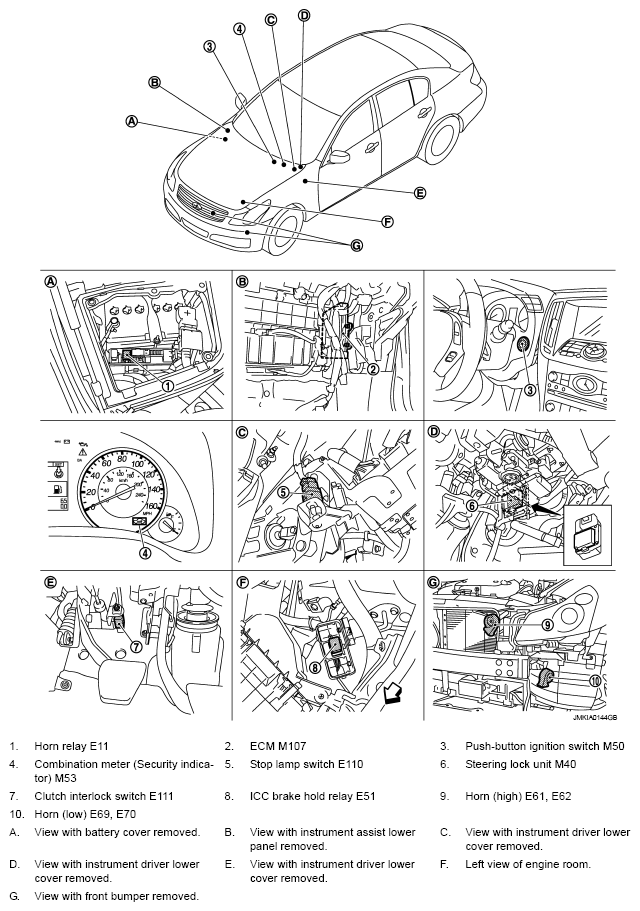

Fig 2: Identifying Intelligent Key System/Engine Start Function Component Location (2 Of 3)
G05226922

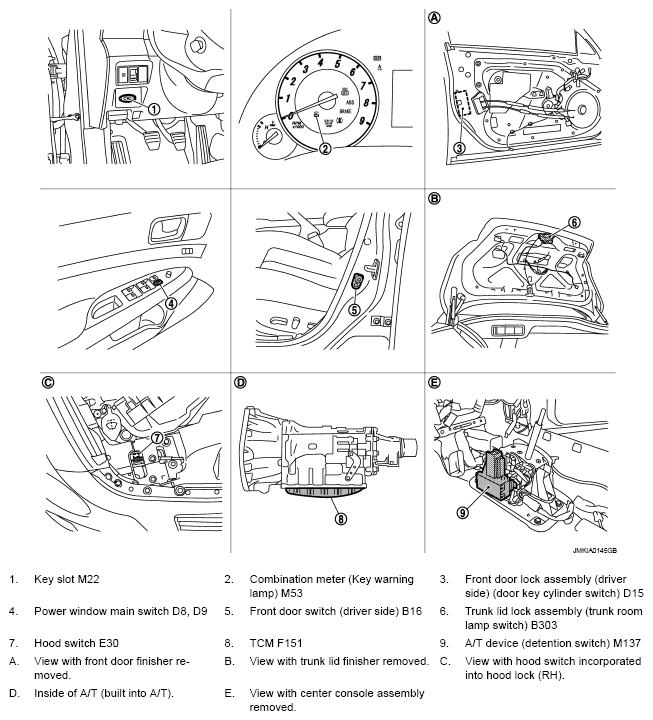

Fig 3: Identifying Intelligent Key System/Engine Start Function Component Location (3 Of 3)
G05226923
