Control Valve with TCM and A/T Fluid Temperature Sensor 2: Components

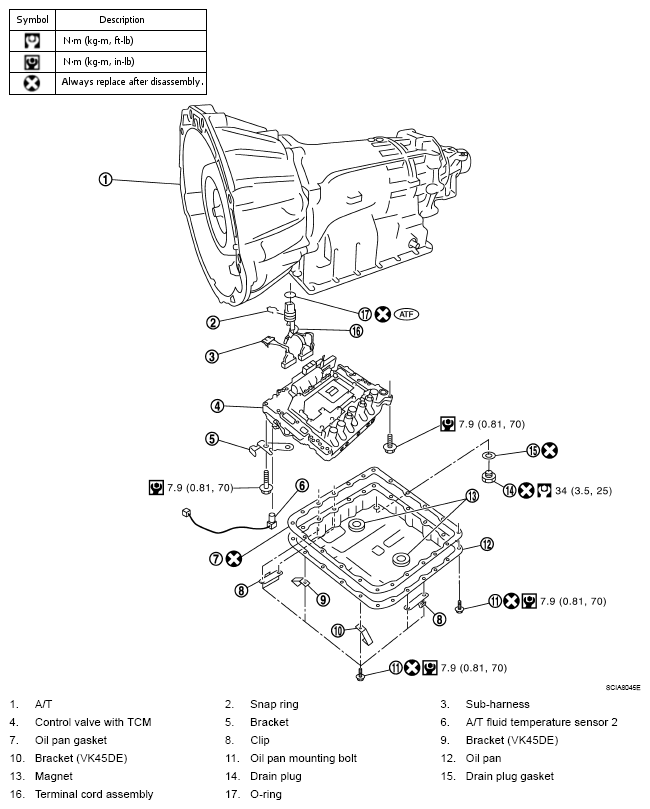

Fig 1: Control Valve With TCM And Replacement Components With Torque Specifications

G05218142

Courtesy of NISSAN MOTOR CO., U.S.A.
