Clutch And Band Chart

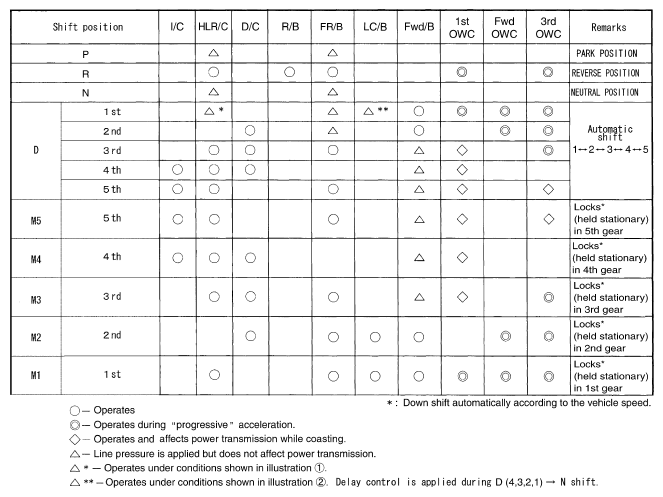

Fig 1: Identifying A/T Control System Clutch And Band Chart
G05217908Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Vehicle Speed Throttle Opening Operation Condition
G05217909Courtesy of NISSAN MOTOR CO., U.S.A.
