Cross-sectional View (VQ35DE Models for AWD)

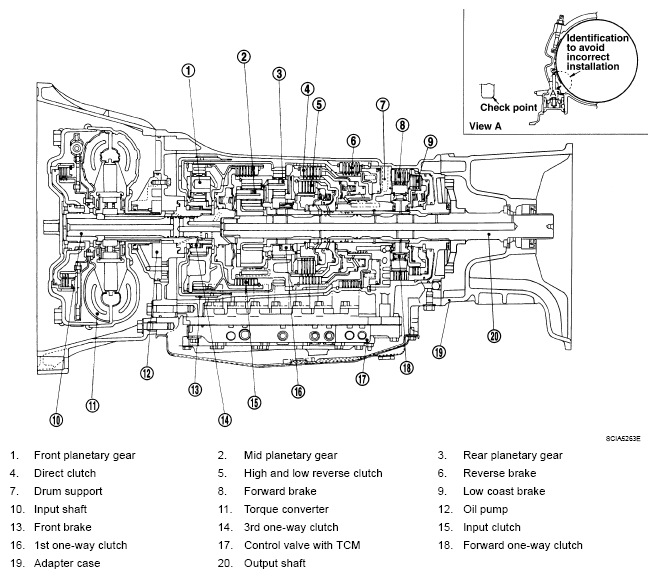

Fig 1: Identifying Cross-Sectional View Of A/T Control System Components (VQ35DE Models For AWD)

G05217905

Courtesy of NISSAN MOTOR CO., U.S.A.
