Home >> Infiniti >> 2007 >> FX45 >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Front Suspension Assembly >> Removal and Installation >> Components

Removal and Installation: Components

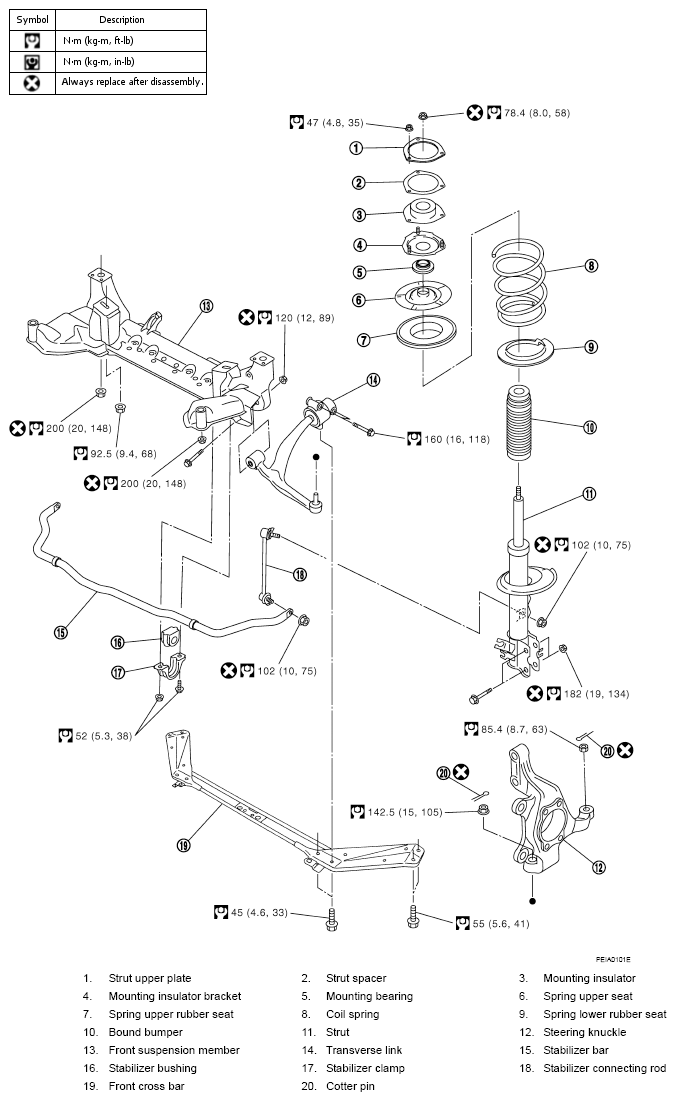

Fig 1: Front Suspension Replacement Components With Torque Specifications
G05227757

Refer to "COMPONENTS " for the symbols in the figure.
