Infiniti
>>
2007
>>
FX45
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Actuator And Electric Unit (Assembly)
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

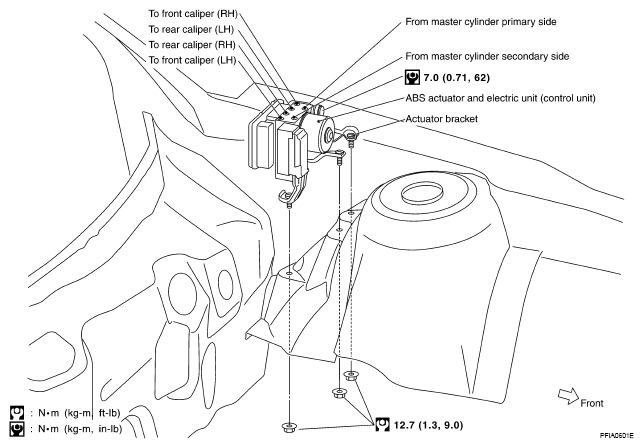

Fig 1: Actuator And Electric Unit With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
